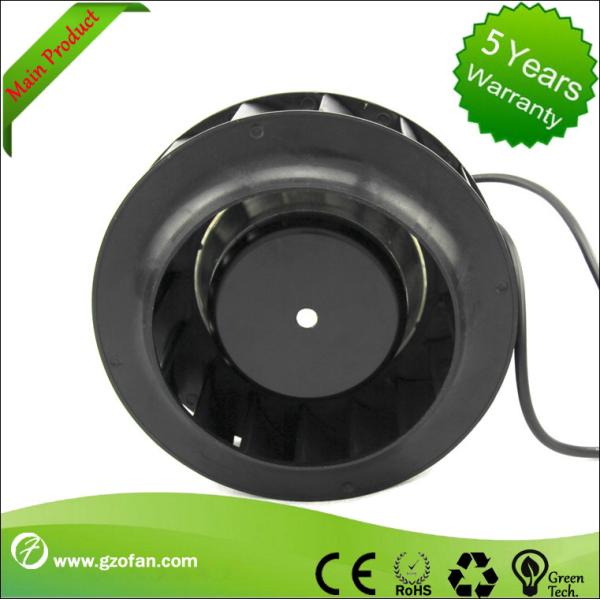

Speed Adjustable Ec Cetrifugal Cooling Fan For Ev Charging Pile Heat Dissipation
Speed Adjustable Ec Cetrifugal Cooling Fan For Ev Charging Pile Heat Dissipation
Speed Adjustable Ec Cetrifugal Cooling Fan For Ev Charging Pile Heat Dissipation
Speed Adjustable Ec Cetrifugal Cooling Fan For Ev Charging Pile Heat Dissipation
Speed Adjustable Ec Cetrifugal Cooling Fan For Ev Charging Pile Heat Dissipation
Speed Adjustable Ec Cetrifugal Cooling Fan For Ev Charging Pile Heat Dissipation
Specifications
Rated Voltage :
24V
Brand Name :
OFAN
Model Number :
LD190N-24D3-01
Certification :
CE ROHS
Place of Origin :
China
MOQ :
1
Price :
negotiation
Supply Ability :
10000PCS
Packaging Details :
45*45*24
Power iput :
80W
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Delivery Time :
5-8 work days
Air Flow :
580m³/h
Rated Speed :
3000RPM
Rated Current :
2.4A
Type :
LD190N-24D3-01
Description

Speed Adjustable Ec Cetrifugal Cooling Fan For Ev Charging Pile Heat Dissipation

Specifications:

Model Number:LD190N-24D3-01

Rated Voltage:310V

Rated Speed:3300RPM

Power:60w

Rated Current:0.19A

Air Flow:560m³/h

Material:PA66

Type of protection: IP44

Approvals: CCC CE

Insulation class:B

Ball bearing:NSK

Brushless dc fan use a permanent magnet excitation, eliminate the loss of induction motor excitation currents; realizing the small loss an high efficiency characteristics

The components, such ac inverters etc, whose capacity is low, and circuit are simpler, the cost lower than ec blower’s

Variable speed control of dC fan can be realized / achievedvia 0-10V speed adjustment and/or external circuit impulse modulation

EC fans includes AC input driven brushless DC fan with integrated design of AC-DC transformation circuit, the PFC circuit, the BLDC drive circuit, interface circuit. Due to the internal integration of the AC-DC converter circuit, the consumption of power will be reduced to facilitate the design and application of the overall power system in customer
