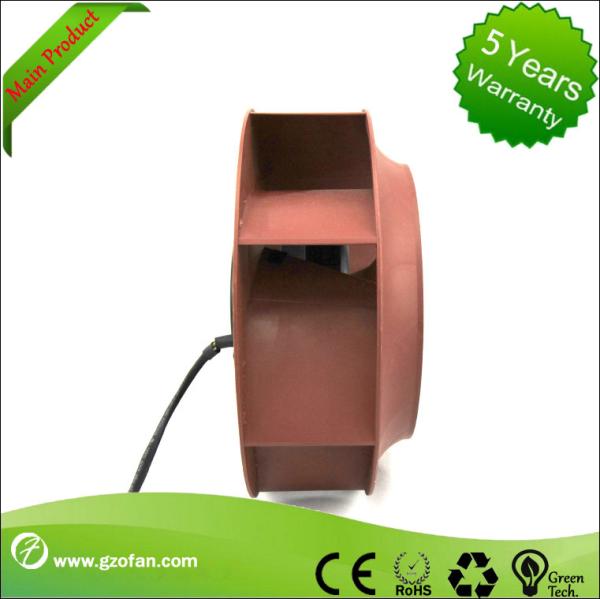

Brushless DC Cooling Fan , Backward Curved Centrifugal Fan For Air Conduit
Brushless DC Cooling Fan , Backward Curved Centrifugal Fan For Air Conduit
Brushless DC Cooling Fan , Backward Curved Centrifugal Fan For Air Conduit
Brushless DC Cooling Fan , Backward Curved Centrifugal Fan For Air Conduit
Specifications
Brand Name :
OFAN
Model Number :
LD190N-248D3-01
Certification :
CE ROHS
Place of Origin :
China
MOQ :
1
Price :
negotiation
Supply Ability :
10000PCS
Type :
LD190N-48D3-01
Rated Voltage :
48V
Rated Current :
1.15A
Rated Speed :
3000RPM
Power iput :
79W
Air Flow :
580m³/h
Description

Low Noise Dc Fan Withreduce The Emission Of Co2 For Ld190n-48d3-01

1. Brushless dc fan use a permanent magnet excitation, eliminate the loss of induction motor excitation currents; realizing the small loss an high efficiency characteristics

2. More power
3. Centrifugal fans with backward curved blades are used primarily for intake suction and do not require a scroll housing. They have high hydraulic efficiency

Specifications:

Model Number:LD190N-48D3-01

Rated Voltage:48V

Rated Speed:3300RPM

Power:79w

Rated Current:1.15A

Air Flow:560m³/h

Material:PA66

Type of protection: IP44

Approvals: CCC CE

Insulation class:B

Ball bearing:NSK

Brushless DC Cooling Fan , Backward Curved Centrifugal Fan For Air Conduit
