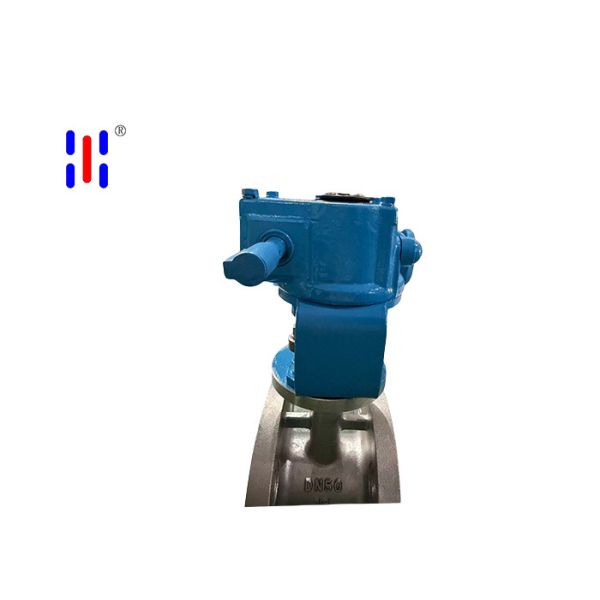

PTFE Lined Double Eccentric Butterfly Valves Soft Seal Double Offset For Seawater Circulation
PTFE Lined Double Eccentric Butterfly Valves Soft Seal Double Offset For Seawater Circulation
Specifications
Brand Name :
YuGong
Model Number :
D342F-PN16CR
Certification :
CE,API 607,API 609，ISO,TS,EAC
Place of Origin :
China
MOQ :
1
Price :
100USD
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
1000pcs/Mon
Delivery Time :
20 days
Packaging Details :
Select the appropriate wooden crate based on the valve's design
Body Material :
WCB,LCB,CF8,CF3,2205,2507,904L,etc.
Stem packing :
PTFE,EPDM,WCB,SS,Graphite,Hard treatment(Stellite,Cr),Low leakage,Lip seal,etc.
Connection type :
BW, RF, RTJ. FF
Operator :
Manual,Pneumatic,Hydraulic,Electric
Connection :
Wafer，flange，lug，Butt-welded
Pressure :
150LB-2500LB
NDT :
UT,RT,PT,MT
Description

PTFE Lined Soft-Seal Double Eccentric Butterfly Valve for Seawater Circulation

Product Features

The PN16 pressure rating is suitable for medium- and low-pressure applications. Available in two materials—WCB carbon steel and 316 stainless steel—to meet the needs of different media: WCB is suitable for standard, non-corrosive media, while 316 offers corrosion resistance. Both materials comply with the PN16 pressure rating, precisely matching pipeline designs across municipal and industrial sectors. With high adaptability and cost-effectiveness, they lay a solid foundation for pipeline operation.


Product Advantages

● Flanged connections comply with universal standards, ensuring secure connections and easy installation and removal, and seamlessly integrating with various piping systems. The soft-seal structure provides elastic compensation, achieving zero leakage in both directions and meeting stringent sealing requirements. The double-offset design prevents friction between the seat and the disc, ensuring smooth opening and closing without sticking, extending service life, and reducing long-term maintenance costs.

Design Standards

Technique request

Standard

Design Standard

API 609, ASMEB16.5,EN593,GB/T12238,JB/T8527

Face to Face Standard

ASME B16.10

Connection standard

ASME B 16.5,ASME B 16.47,GOST33259,EN1092-1,HG/T20592,JIS B2220,GB/T9113,GB/T9124.1

Test & Inspect Standard

API 598,EN 12266,GB/T13927

Nominal Dimension

2”- 100”

Connection type

BW, RF, RTJ. FF

Fungtive Emission Testing

ISO 15848

Product detail

PTFE Lined Double Eccentric Butterfly Valves Soft Seal Double Offset For Seawater Circulation

Application

Chemical and Petrochemical Industries,Power Generation, Water Treatment and Environmental Protection,Metallurgy and Shipbuilding.

About Us

Zhejiang Yugong Fluid Technology Co., Ltd. is a comprehensive high-tech enterprise integrating production and sales. The company manufactures and operates professional butterfly valves made of stainless steel, carbon steel, titanium and other materials. Founded in 2012, the company is located in Yongjiao Oubei, the "hometown of pumps and valves in China", covering an area of 4,000 square meters and has more than 80 employees. Aiming high and forging ahead, the company looks forward to working hand in hand with new partners and walking all the way!

PTFE Lined Double Eccentric Butterfly Valves Soft Seal Double Offset For Seawater Circulation

Our Workshop

PTFE Lined Double Eccentric Butterfly Valves Soft Seal Double Offset For Seawater Circulation

PTFE Lined Double Eccentric Butterfly Valves Soft Seal Double Offset For Seawater Circulation

PTFE Lined Double Eccentric Butterfly Valves Soft Seal Double Offset For Seawater Circulation

PTFE Lined Double Eccentric Butterfly Valves Soft Seal Double Offset For Seawater Circulation

PTFE Lined Double Eccentric Butterfly Valves Soft Seal Double Offset For Seawater Circulation

PTFE Lined Double Eccentric Butterfly Valves Soft Seal Double Offset For Seawater Circulation

F&Q

Q: Are you trading company or manufacturer ?
A: We are a factory.
Q: How long is your delivery time?
A: According to the order,10~60days.
Q: Do you provide samples ? Is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shippment.

Customer Service

  1. Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
  2. Your inquiry related to our products or price will be replied in 24hrs.
  3. Keep informing our customer production process and help arrange quality checking in the factory if necessary.
  4. one-year warranty toproducts.
