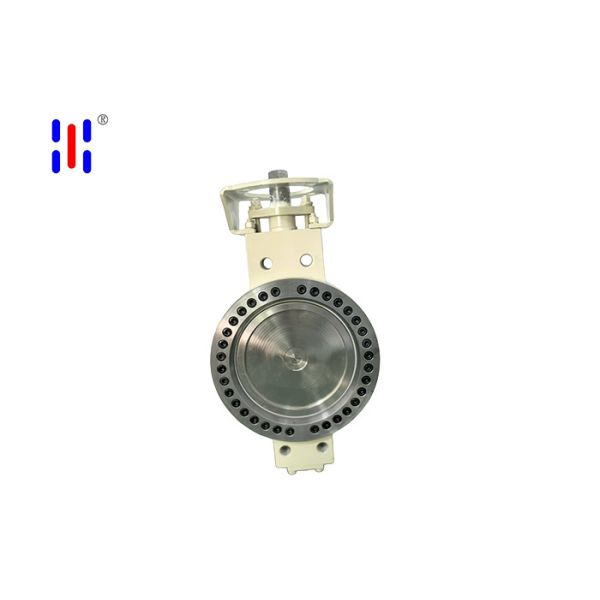

300LB Wafer Type WCB Soft Seaing Double Offset Butterfly Valve
300LB Wafer Type WCB Soft Seaing Double Offset Butterfly Valve
Specifications
Brand Name :
YuGong
Model Number :
D372F-300LB-C
Certification :
CE,API 607,API 609，ISO,TS,EAC
Place of Origin :
China
MOQ :
1
Price :
100USD
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
1000pcs/Mon
Delivery Time :
20 days
Packaging Details :
Select the appropriate wooden crate based on the valve's design
Body Material :
WCB,LCB,CF8,CF3,2205,2507,904L,etc.
Stem packing :
PTFE,EPDM,WCB,SS,Graphite,Hard treatment(Stellite,Cr),Low leakage,Lip seal,etc.
Size :
DN50-DN1600
Connection standard :
ASME B 16.5,ASME B 16.47,GOST33259,EN1092-1,HG/T20592,JIS B2220,GB/T9113,GB/T9124.1
Connection :
Wafer，flange，lug，Butt-welded
Pressure :
150LB-2500LB
Description

300LB Wafer Type WCB Soft Seaing Double Offset Butterfly Valve

Product Features

WCB offers low material costs and is suitable for media that do not require special corrosion resistance. It is also easy to weld, cut, or repair on-site and is suitable for direct welding to carbon steel pipes. WCB’s tensile strength (485–655 MPa) and yield strength (≥250 MPa) are significantly higher than those of gray cast iron or ductile iron, enabling it to safely withstand Class 300 pressure.


Product Advantages

●The wafer-type connection features an ultra-slim design that requires minimal installation space, and the valve body is short in length, making it ideal for applications with dense piping and limited space. The valve can be removed as a single unit simply by loosening the bolts, eliminating the need to move the piping and facilitating maintenance or replacement. The soft-seal elastic material automatically compensates for minor deformations caused by pressure fluctuations and temperature changes, ensuring a long-term seal. The double-offset design minimizes friction at the sealing surfaces, making it particularly suitable for applications involving frequent operation.


Design Standards

Technique request

Standard

Design Standard

API 609, ASMEB16.5,EN593,GB/T12238,JB/T8527

Face to Face Standard

ASME B16.10

Connection standard

ASME B 16.5,ASME B 16.47,GOST33259,EN1092-1,HG/T20592,JIS B2220,GB/T9113,GB/T9124.1

Test & Inspect Standard

API 598,EN 12266,GB/T13927

Nominal Dimension

2”- 100”

Connection type

BW, RF, RTJ. FF

Fungtive Emission Testing

ISO 15848


Product detail

300LB Wafer Type WCB Soft Seaing Double Offset Butterfly Valve


Application

Chemical and Petrochemical Industries,Power Generation, Water Treatment and Environmental Protection,Metallurgy and Shipbuilding.


About Us

Zhejiang Yugong Fluid Technology Co., Ltd. is a comprehensive high-tech enterprise integrating production and sales. The company manufactures and operates professional butterfly valves made of stainless steel, carbon steel, titanium and other materials. Founded in 2012, the company is located in Yongjiao Oubei, the "hometown of pumps and valves in China", covering an area of 4,000 square meters and has more than 80 employees. Aiming high and forging ahead, the company looks forward to working hand in hand with new partners and walking all the way!

300LB Wafer Type WCB Soft Seaing Double Offset Butterfly Valve

Our Workshop

300LB Wafer Type WCB Soft Seaing Double Offset Butterfly Valve

300LB Wafer Type WCB Soft Seaing Double Offset Butterfly Valve

300LB Wafer Type WCB Soft Seaing Double Offset Butterfly Valve

300LB Wafer Type WCB Soft Seaing Double Offset Butterfly Valve

300LB Wafer Type WCB Soft Seaing Double Offset Butterfly Valve

300LB Wafer Type WCB Soft Seaing Double Offset Butterfly Valve


F&Q

Q: Are you trading company or manufacturer ?
A: We are a factory.
Q: How long is your delivery time?
A: According to the order,10~60days.
Q: Do you provide samples ? Is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shippment.

Customer Service

  1. Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
  2. Your inquiry related to our products or price will be replied in 24hrs.
  3. Keep informing our customer production process and help arrange quality checking in the factory if necessary.
  4. one-year warranty toproducts.
