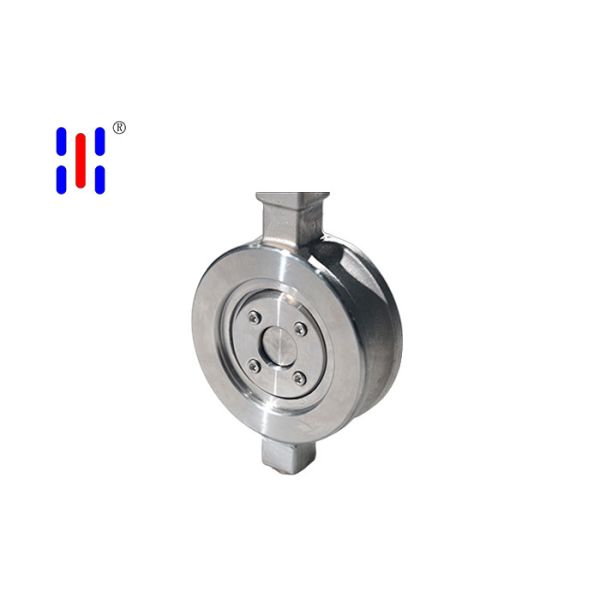

DN100 Flanged PN16 316 Stainless Steel Triple Offset Butterfly Valve

Product Features

The valve body, butterfly disc, and other core flow-passing components are all made of 316 austenitic stainless steel. The addition of molybdenum significantly enhances resistance to uniform corrosion caused by corrosive media such as organic acids, inorganic acids, dilute chloride solutions, and alkaline solutions. The DN100 nominal diameter is highly compatible with mainstream process pipelines, ensuring sufficient flow capacity and allowing direct system integration without the need for reducers or adapters. The valve body is designed to a PN16 pressure rating, enabling it to withstand pressure fluctuations and frequent opening and closing cycles while maintaining structural integrity and consistent sealing performance.

Product Advantages

● Featuring a double-flanged end design, the gasket seal is positioned between flat flanges, and the fastening bolts do not penetrate the valve body. This design ensures excellent installation alignment, enabling reliable integration with pipelines and rapid maintenance.
● The three-dimensional design incorporates double eccentricity combined with angular eccentricity. The disc disengages from the sealing surface the moment it opens and only makes contact and compresses upon closing. The entire 90° rotation cycle is friction-free and scratch-free.
● The metal hard seal is combined with a high-temperature-resistant flexible graphite layer to form a self-compensating sealing pair.

Design Standards

Product detail

Application

Chemical and Petrochemical Industries,Power Generation, Water Treatment and Environmental Protection,Metallurgy and Shipbuilding.

About Us

Zhejiang Yugong Fluid Technology Co., Ltd. is a comprehensive high-tech enterprise integrating production and sales. The company manufactures and operates professional butterfly valves made of stainless steel, carbon steel, titanium and other materials. Founded in 2012, the company is located in Yongjiao Oubei, the "hometown of pumps and valves in China", covering an area of 4,000 square meters and has more than 80 employees. Aiming high and forging ahead, the company looks forward to working hand in hand with new partners and walking all the way!

Our Workshop

F&Q

Customer Service

1. Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
2. Your inquiry related to our products or price will be replied in 24hrs.
3. Keep informing our customer production process and help arrange quality checking in the factory if necessary.
4. one-year warranty toproducts.
