Specifications
Place of Origin :
china
Brand Name :
aluz
Certification :
CE
Model Number :
SUPE808E+
Description

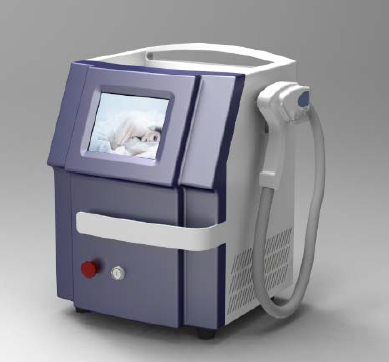

IPL Diode Laser 808nm Painless Hair Removal Equipment Depilation Beauty Multifunction

Diode Laser Machine

Diode Laser 808nm Painless Hair Removal Equipments Depilation Beauty Multifunction

Specifications:

Laser Type

Diode Laser

Laser Stacks Power

600W

Wavelength (Spectrum)

808nm

Energy Density (Fluence)

100J/cm2 (Continuously adjustable)

Spot Size

13x13mm2

Pulse Repetition Rate

1-10Hz

Pulse Duration

10-400ms

Pulses

Single


Cooling

• Continuous Sapphire contact cooling(-5℃~1℃)
• Air cooling
• Closed water circulation cooling

Stand-by Working

Continuously for 20 hours

Display

8.4" True Color LCD Touch Screen

Electrical Requirements

110/230VAC, 15/20A max., 50/60Hz

Net Weight

45kgs

Dimensions (WxDxH)

450*550*680 mm


How it works?
DepiMED, clinically proven to deliver safe and effective hair removal on all skin and hair types, is the fastest diode laser platform of LaserTell.
It is performed using gold standard 808nm diode laser technology, with energy penetrates deep into the dermis with high average power and a rapid 10 pulse-per-second repetition rate to heat the hair shaft and hair follicle, rather than destroy the oxygen organization around hair follicle.
Meanwhile, contacting surface cooling technology applied on the Sapphire Dual-Chill Tip can eliminate the heat effect attributed to optical energy, greatly improving both the treatment performance and safety.

Gradual Heating is the KEY!
* A standout in the Industry with the gradual fluency. (heating the hair follicles very gradually)
---Instead of simply blasting unwanted hair with great discomfort.
* Combined with cooling from the Sapphire Dual-Chill Tip, makes it so comfortable that neither gels nor analgesics are Required.
* Permanent hair reduction on all pigmented hair and all skin types—including tanned skin.
---This flexibility makes it ideal for both physicians and medical spa professionals.

* Fastest coverage rate in the industry, with a huge 12x12mm spot and up to 10Hz repetition rate.
* No consumables, cost-effective.
• Virtually Painless
* Safely and gently heating the dermis to a temperature that damages the hair follicle and prevents re-growth, yet does not injure the surrounding skin.
* The Cooling Sapphire Dual-Chill Tip designed to protect the outer layer of skin by decreasing the surface temperature and preventing thermal injury from the laser beam.

Applications
• Permanent Hair Reduction on all pigmented hair and all skin types—including tanned skin.
• Pain-Free, Hair-Free - Comfortable Hair Removal
• High Fluence with large spots for effective treatments
• Fast treatment of large areas
• Homogeneous beam profile of the spots to minimize side effects
• Effective skin cooling intergrated in the handpiece with automatic control od the skin temperature for gentle and convenient treatment with high efficiancy
• Double pulse for additional safety
• No consumables


Competitive Advantage:

Normal Diode

DepiMED+

Laser emitter

China laser emitter
Laser power:300W
Lifetime:500,000 flashes

Germany SIEMENS OSRAM laser bar
Laser power:600W
Life time:10,000,000 flashes
Diode Laser 808nm Painless Hair Removal Equipments Depilation Beauty Multifunction

Flow filter

Sand filter has high risk burnt the laser emitter

Diode Laser 808nm Painless Hair Removal Equipments Depilation Beauty Multifunction

Fiber filter
Refined cotton fiber assures separate 99% impurities and
suspended solids , so as to protect the laser stacks from corrosion
and block.
Diode Laser 808nm Painless Hair Removal Equipments Depilation Beauty Multifunction

Handle Crystal

K9 Glass

100% Sapphire Crystal

Cooler

Contact cooling temp.more than 5 degree

Under Zero degree on the epidermis contiously

Cooling Method

Single refrigerator
Diode Laser 808nm Painless Hair Removal Equipments Depilation Beauty Multifunction

Dual cooling method
High Power Refrigerator + Radiator
Diode Laser 808nm Painless Hair Removal Equipments Depilation Beauty Multifunction

Pump

22R Magnetic pump with Head of 5m only
Flow: 20L/min(MAX 25L/min)
Diode Laser 808nm Painless Hair Removal Equipments Depilation Beauty Multifunction

High voltage diaphragm pump(Head: 11m) :
Flow: 45L/min(MAX 55L/min)
Diode Laser 808nm Painless Hair Removal Equipments Depilation Beauty Multifunction

Tank

5-6L When constant using cannot keep water cool water supply
Diode Laser 808nm Painless Hair Removal Equipments Depilation Beauty Multifunction

8L Sufficient water stock to assure water flow
Diode Laser 808nm Painless Hair Removal Equipments Depilation Beauty Multifunction

Inner Configurations

Not conform to EU Rules and Safety Regulations according to EN 60601-1-6: 2004 (directives of Medical Devices)
Always ignore the design of electricity circuit by adding water circulation devices upstairs
Diode Laser 808nm Painless Hair Removal Equipments Depilation Beauty Multifunction

Modular configurations enable service the simple way.
Modular design strictly in accordance with EU Rules and Safety Regulations according to EN 60601-1-6: 2004 (directives of Medical Devices)
Diode Laser 808nm Painless Hair Removal Equipments Depilation Beauty Multifunction

Warranty

12 months

24 months available (with Lifelong Service available)































































Treatment Result (Before and After)



DepiMED
Diode Laser 808nm Painless Hair Removal Equipments Depilation Beauty Multifunction
