AHD 1080P 960P 720P Vandalproof fixed 2.8mm or 3.6mm lens 25meters Day/Night IR Dome Camera ZY-FD6100AH
AHD 1080P 960P 720P Vandalproof fixed 2.8mm or 3.6mm lens 25meters Day/Night IR Dome Camera ZY-FD6100AH
AHD 1080P 960P 720P Vandalproof fixed 2.8mm or 3.6mm lens 25meters Day/Night IR Dome Camera ZY-FD6100AH
AHD 1080P 960P 720P Vandalproof fixed 2.8mm or 3.6mm lens 25meters Day/Night IR Dome Camera ZY-FD6100AH
AHD 1080P 960P 720P Vandalproof fixed 2.8mm or 3.6mm lens 25meters Day/Night IR Dome Camera ZY-FD6100AH
AHD 1080P 960P 720P Vandalproof fixed 2.8mm or 3.6mm lens 25meters Day/Night IR Dome Camera ZY-FD6100AH
AHD 1080P 960P 720P Vandalproof fixed 2.8mm or 3.6mm lens 25meters Day/Night IR Dome Camera ZY-FD6100AH
AHD 1080P 960P 720P Vandalproof fixed 2.8mm or 3.6mm lens 25meters Day/Night IR Dome Camera ZY-FD6100AH
Specifications
Place of Origin :
ShenZhen
Brand Name :
ZYSECURITY
Model Number :
ZY-FD6100AH
Certification :
CE,FCC,Rohs
OEM :
Logo,Box,Manual,Software
Description
AHD 1080P 960P 720P Vandalproof fixed 2.8mm or 3.6mm lens 25meters Day/Night IR Dome Camera ZY-FD6100AH
Day/Night AHD VandalProof Metal IR Dome Camera
Features:
●1/4"1.1Megapixel 25/30fps 720P low lux
1/2.7"1.3Megapixel 25/30fps 960P low lux
1/2.8"1.2.8Megapixel 25/30fps 1080P low lux
●Support OSD,UTC
●Day/Night(ICR), AWB, AGC, BLC, 3D-DNR
●Audio, Alarm (optional)
●Support AHD-H, AHD-M,AHD-L,960H 3mode
●High speed, 500m distance transmission
●2.8mm or 3.6mm or 4mm or 6mm fixed MegaPixel HD lens
●Max. IR LEDs length 25meters
●IP66 Vandalproof IR Dome camera,DC12V
●p2p CloudMobile app:vMEyeCloudWeb:xmeye.net
●Compression :H.264 High Profile
Technical datasheet:
Model No.ZY-FD6100AHZZY-FD6100AHAZY-FD6100AHNZY-FD6100AHTZY-FD6100AHYZY-FD6100AHOZY-FD6100AHS
Image Sensor1/4" 1.0 Megapixel CMOS1/4" 1.1 Megapixel CMOS1/3" 1.3 Megapixel CMOS1/3" 1.3Megapixel CMOS1/3" 1.4Megapixel CMOS1/2.8" 2.0Megapixel CMOS1/2.8" 2.4Megapixel CMOS
Chipset Sensor1/4 OV9712+NVP2431H1/4 AR0141+NVP2431H1/3 SC1035+NVP2431H1/3 Aptina AR0130+NVP2431H1/3 SONY IMX238+NVP2431H1/2.7 OV2710+NVP2441H1/2.8 SONY IMX322+NVP2441H
Effective Pixels1280(H)×720(V)1280(H)×960(V)1280(H)×1080(V)
Video FramePAL:25fps 720PPAL:25fps 960PPAL:25fps 1080P
Video Frame RateNTSC: 30fps 720PNTSC: 30fps 960PNTSC: 30fps 1080P
Electronic Shutter1/50(1/60)S~1/100,000S
SynchronizationInternal
SNR ( Signal to Noise Ratio)>58dB
Scanning SystemProgressive Scan
Mini.Illumination0.01Lux F1.2(AGC ON)0.001Lux F1.2(AGC ON)0.001Lux F1.2(AGC ON)0.001Lux F1.2(AGC ON)0.001Lux F1.2(AGC ON)0.01Lux F1.2(AGC ON)0.001Lux F1.2(AGC ON)
0Lux IR on0Lux IR on0Lux IR on0Lux IR on0Lux IR on0Lux IR on0Lux IR on
Video Output1-channel BNC AHD-H, AHD-M,AHD-L,960H 4mode video output switch
Night Vision
Max. IR LEDs LengthIR led: ￠5*24pcs IR led, IR distance: 20-25m
Day/NightAuto(ICR) / Color / B/W
IR StatusUnder 10 Lux by CDS
IR Power OnCDS Auto Control
Lens
Focal Length2.8mm or 3.6mm or 4mm or 6mm fixed MegaPixel HD lens
Mount TypeF2.0Angle of View115º or 75.7ºor 78ºor 53º
Camera Features
Day/NightAuto/B&W/Color/EXT
OSD MenuSupport OSDSupport OSDSupport OSDSupport OSDSupport OSDSupport OSDSupport OSD
OSD languagesEN, CN, DE, FRA, IT, ES, PL, RU, PT, NL, TR
White BalanceAWB/ATW/AWC/INDOOR/OUTDOOR/MANUAL
Gain ControlAuto
BLCBLC/HSBLC/OFF
Noise Reduction2D NR2D/3D NR2D/3D NR2D/3D NR2D/3D NR2D/3D NR2D/3D NR
Picture AdjustmentYES
MirrorROTATE/OFF/MIRROR/V-FLIP
Motion Detection & PrivacyON/OFF(4 Programmable Zone)
General
Power SupplyDC12V ± 10%
Power Consumption<5W°
Working Environment-30°C~+60°C / Less than 95% RH ( no condensation )
Transmission DistanceOver 500meters via 75-3 coaxial cable
Ingress ProtectionIP66,Vandalproof
Anti-cut BracketNO
Dual VoltageNO
IR Cut FilterYES

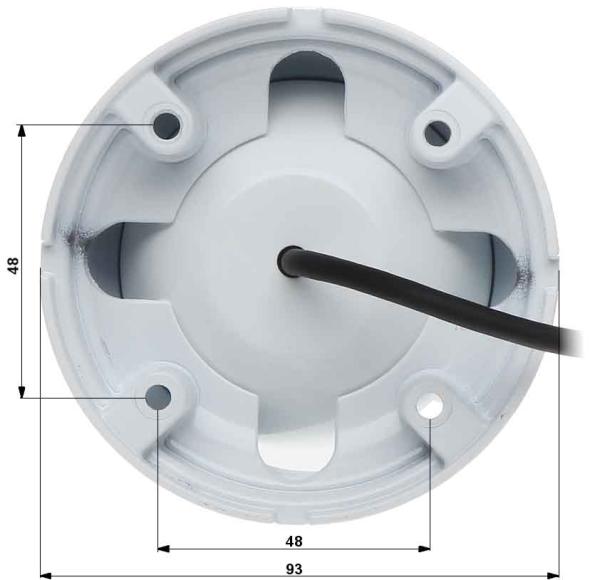

Dimensions ( WxDxH )120(D) x 80(H)
MaterialMetal
Weight0.45KG
