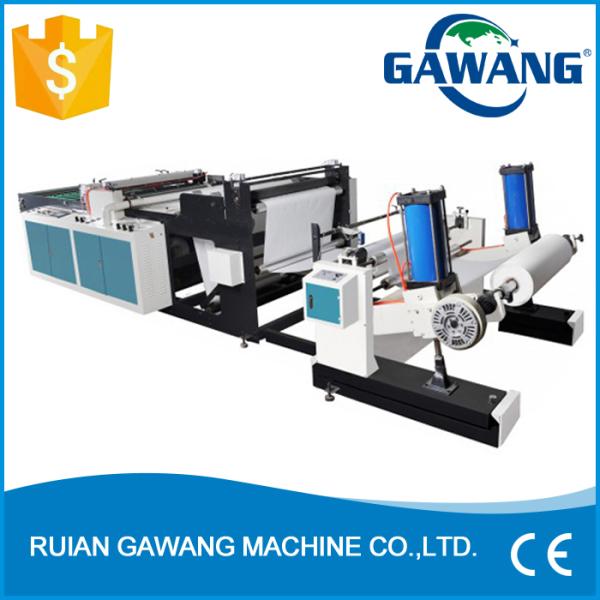

1 Layer Feeding A4 Paper Ribbon Cross Cutting Machine
1 Layer Feeding A4 Paper Ribbon Cross Cutting Machine
Specifications
Place of Origin :
Ruian City,China
Brand Name :
Gawang Machine
Certification :
CE,ISO
Model Number :
GW-HQ-1100B
Type :
1 Layer Feeding A4 Paper Ribbon Cross Cutting Machine
Loading system :
Auto pneumatic loading system
Tension Control :
Auto tension control
Servo motor :
Yaskawa
Touch screen :
Weilen from Taiwan
Frequency inverter :
Innovance
Max.cutting speed :
150m/min
Cutting precision :
0.2mm
Main function :
With belt transferring
Function :
With Paper stacker
Description

1 Layer Feeding A4 Paper Ribbon Cross Cutting Machine is automatic slitting and cross cutting the paper roll into A4 size, and packing the A4 paper ream in one process.

1. Description:

A4 Copy paper cutting and packing machine shortens cutting and packing time, increasing productivity greatly and high accurate cutting.

High automation low labor intensity.
It is a integration of electric automatization, PLC controlling system and mechanical automation.
The whole process consists of paper roll unwinding, slitting, sheeting, counting, conveying, reams ejecting, packing.

2. Features and Structure:

1)Non-shaft paper rising shelves of the ground controlling system------ Two sets
2)Advanced tension controlling system ------ Four sets.
3)Four sets of anti-warping mechanisms------Four sets.
4)Longitudinal cutting knife groups------Five sets.
5)Simultaneous cross-cutting knife group-----One set.
6)High-speed paper feeding system-----Three sets.
7)Low-speed paper feeding system-----Two sets
8)Waste paper automatically discharging system-----One set.
9)Making papers in order of 2D oscillation, the cylinder lifting device of reams of paper collecting system------One set.
10)PLC reams of paper counting device------One set.
11)Reams of paper longitudinally discharging equipment-----One set.
12)PLC failure alarm and machine haulting system and PLC controlling equipment ------One set.

3. Main Specification:

Gross width

1100mm

Net width

1100mm

Number of cutting

4cuttings-A4 210mm(width)

Diameter of paper roll

400-1200mm

Diameter of paper roll’s core

3”(76.2mm)-6”(152.4mm)

Weight of paper sheet

60-100gsm

Length of paper cutting

A4(297mm)

Paper quantity

0-500pages

Ream height

65mm(Max)

Designing speed of paper cutting

160m/min

Times of cutting

538/min

Cycle time of ream exhausted

4.3/min

Real speed of paper cutting

130m/min

Times of cutting

437/min

Cycle time of ream exhausted

3.5/min(14 reams/min)

Load of paper cutting

(max)400gsm(4×100gsm)

Paper cutting accuracy

±0.2mm(Permissible error)

Paper cutting condition

1.Speed not change 2.Paper roll with no breakage

3. Qulified paper roll.

Transmission

AC Frequency conversion,stepless speed regulating

Main power source

3phase/380v/50Hz

Adjustable voltage

220V AC/22V DC

Installed capacity

35KW

Air consumption

300NL/min

Pneumatic pressure

6bar

Overall dimension(cutting machine)

15000×2750×2100mm

Weight

12 T

Overall dimension(packing machine)

6000×3400×1600mm

Weight

2.5 T
