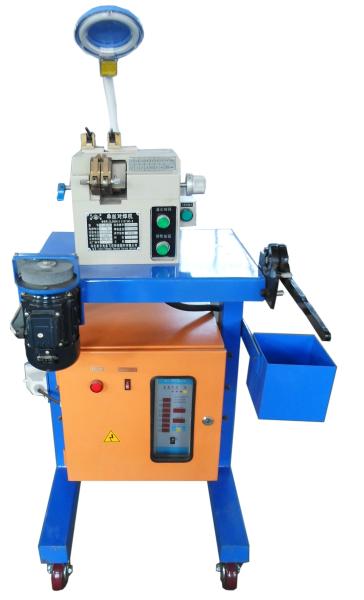

DS-Ⅱ( CK) butt welder
DS-Ⅱ( CK) butt welder
Specifications
Description

1.1 machine plant (single 0.4-3.5mm)

1.1.1 DS-1 monofilament butt welding machine for welding low carbon steel high school; stainless steel, steel and non-ferrous metals; copper alloy Wire alloy wire rod;

1.1.2 clip wire way more convenient, compression-wire operation in the form of eccentric compression. Small and medium diameter welded;

1.1.3 work light devices: Magnifier work light;

1.1.4-wheel mobile devices mobile convenience, elegant appearance;

1.1.5 grinding machine: with safety shield, shock absorbers, 0-60 seconds time delay control;

1.1.6 manual disc cutting tool: blades made of high speed steel;

1.1.7 CK control system can store up to 30 kinds of specifications, data is automatically saved, with secondary tempering procedure, adjust the current stable, welded freely disposable automatic welding

Technical parameters

1.2.1 voltage 220/380V

1.2.2 welding power 2KVA

1.2. level voltage 0.8-2. 84V

1.2.4 weld diameter 0. 4- 3.5mm

1.2.5 the normal frequency 50HZ

1.2.6 regulation 6 levels

1.2.7 welded carbon content 0.7~0.84% high carbon steel

1.2.8 welding rate by more than 95%

1.2.7 retreat range 22-152mm

1.2.8 dimensions 560x560x1150

1.2.14 product weight 75kg
