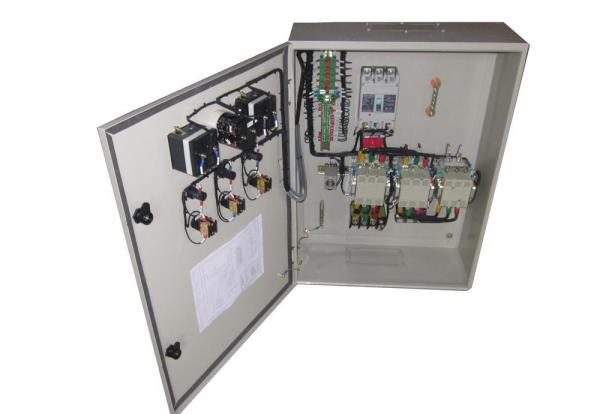

JX（R）1 series power /electrical control box
JX（R）1 series power /electrical control box
JX（R）1 series power /electrical control box
JX（R）1 series power /electrical control box
JX（R）1 series power /electrical control box
JX（R）1 series power /electrical control box
Specifications
Place of Origin :
China
Brand Name :
COREPOWER
Model Number :
JX(R)1
Certification :
IEC60439-1 ,GB7251.1
Description

Summary:

  • JX(R)1 series power control box is one of the dynamic control device widely used in the low voltage distribution system.Due to its easy to install,flexible to use,maintenance is simple,and there are economical and luxury for users to choose from,to meet needs of users.
  • It’suitable for power system with AC50 HZ,rated voltage 380v,rated current under 400A ,as power distribution ,lighting power distribution and power control and so on.
  • It’suitable for industrial and mining enterprises,civil architecture,airport,hotels and other places.
  • Accord with IEC60439-1 ,GB7251.1 and other standard requirement.

Size:

Economic box size

Model number

Size(mm)

Width

Height

Depth

JX1-1

380

500

180

220

280

JX1-2

400

600

JX1-3

400

700

JX1-4

500

700

JX1-5

500

800

JX1-6

600

800

JX1-7

600

900

JX1-8

700

900

JX1-9

700

1000

JX1-10

800

1000

JX1-11

800

1100

JX1-12

900

1100

JX1-13

900

1200

  • Notic:concealed installation:depth dimensions both for 180mm

height and width of panel add 10mm

Economic box size

Model number

Size(mm)

Width

Height

Depth

JX1-1

500

800

180

220

180

JX1-2

500

900

JX1-3

500

1000

JX1-4

600

900

JX1-5

600

1000

JX1-6

600

1100

JX1-7

700

1000

JX1-8

700

1100

JX1-9

700

1200

  • Notic:concealed installation:depth dimensions both for 180mm

height and width of panel add 10mm
