Hot Dipped Galvanized Razor Wire
Hot Dipped Galvanized Razor Wire
Specifications
Place of Origin :
CHINA
Brand Name :
FS
Certification :
ISO9001
Model Number :
FS
Description

Product Information:
Material: galvanized sheet, Stainless steel sheet or low carbon steel sheet
Surface treatment: Hot dipped galvanized or Electro galvanized
Specification:
ART 65 material hot dipped galvanized zinc or Electro galvanized zinc
Thickness: 0.50 mm +/- 0.05 mm
Wire diameter: 2.5 mm +/- 0.05 mm
bars length: 65 mm +/- 1 mm
Bars width: 21 mm + / - 1 mm
Bars spacing: 100 mm +/- 2 mm
450 mm diameter and 35 rings
Straight length: 46.5 mt. per roll after pull open
Standard covered length: 10 mt
Inner packing is plastic film
Outer packing in weaving bag strip

CBT-65 - Material. HD Galvanized Zinc or Electro galvanized zinc
Thickness: 0.50 mm +/- 0.05 mm
Wire diam: 2.50 mm +/- 0.05 mm
Bars length: 65 mm +/- 1 mm
Bars spacing: 100 mm +/- 2 mm
450 mm diameter and 35 rings
Straight length: 46.5 mt per roll after pull open
Standard covered length: 10 mt
Inner packing: in plastic film
Outer packing: in weaving brag strip.

Hot Dipped Galvanized Razor Wire
Hot Dipped Galvanized Razor Wire

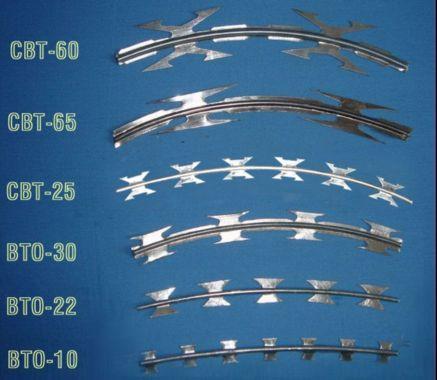

Reference NO. Thickness Wire dia Barb length Barb width Barb spacing
BTO-12 0.5+/-0.05 2.5+/-0.1 12+/-1 13+/-1 26+/-1
BTO-18 0.5+/-0.05 2.5+/-0.1 18+/-1 15+/-1 33+/-1
BTO-22 0.5+/-0.05 2.5+/-0.1 22+/-1 15+/-1 34+/-1
CBT-65 0.5+/-0.05 2.5+/-0.1 65+/-2 21+/-1 100+/-1
