Marine Electric Combination Pressure Water Tank
Marine Electric Combination Pressure Water Tank
Specifications
Place of Origin :
China
Brand Name :
Gathering
Model Number :
GR
Certification :
CCS EC
Description

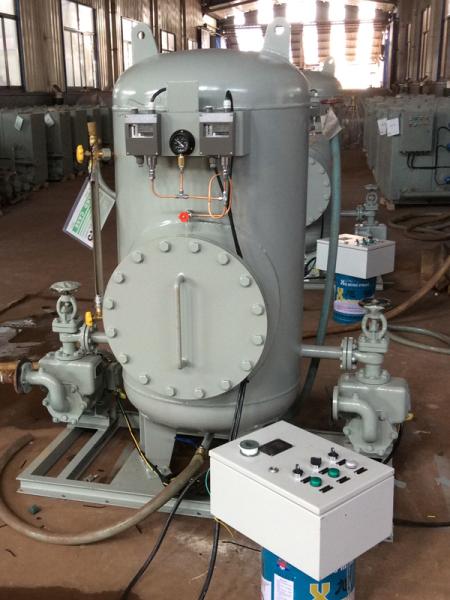

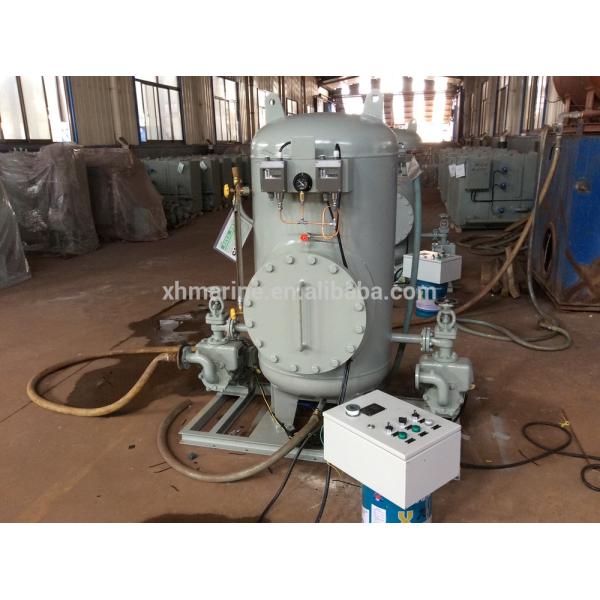

Marine Electric Combination Pressure Water Tank

Application
This series of pressure water tank is suitable for ship fresh water pipes and sea water pipes, pumps; pressure switch, electric control box and hydrophone are installed together. It is compact and beautiful appearance, easy to install and maintain, and it is an ideal unit for water supply system.


Structure
- Safety Value

- Pressure Gauge

- Pressure Controller

- Gas Charging

- Liquid Level Indicator

- Main Body

- Disconnecting-check Valve

- Water Pump

- Discharge Pump

- Electric Control Box

Technical Data


Type		ZYG
0.120.20.30.51.01.52.0
Capacity( m 3 )0.120.20.30.51.01.52.0
Working Pressure(Mpa)0.4
Design Pressure(Mpa)0.44
Test Pressure(Mpa)0.66
Safety valve open pressure(Mpa)0.42
Water Inlet Temp. (c)15
Water Outlet Temp. (c)65
Hot-water capacity (kg/h)180360540720900
Electric heating power(kw)1224364860
The laying of the outer surface of insulation layer thickness (mm)40
Outsourcing galvanized steel sheet thickness(mm)0.7
SourceAC380/50Hz/3P AC440/60Hz/3P
Wight (kg)280320360420450550620
DN40050060070090010001200
A1080119013161424159517161898
B6887909118241072
H12411335141717732090
d1DN40DN40DN40
d23/4"1"
b393445516469617
h1271266621440533
h2540580630//
C320330370490630
