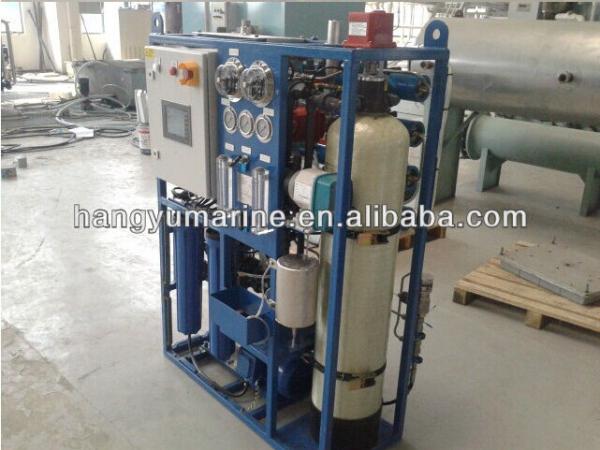

Reverse Osmosis (R.O)Fresh Water Generator

Description

The seawater desalination machine is used for high salt alkali area and seashore area. Use USA

imported reverseosmosis membrane elements, high quality pressure vessels, imported high

pressure pump, reasonable pretreatmentdevice is equipped, effectively remove inorganic salts,

heavy mental ion, organics, bacteria and virus etc. harmfulsubstances in the water, make the

brackish sea water desalinate into drinking pure water that meets WHO standards.It solves the

problem of drinking water in area of water shortage. Because different area with different water quality,

user should be better provide water quality analysis report, ensure us to design the most reasonable,

economic plan sothat it reaches the best treatment efficiency.

Features

.Flexible design for multipurpose applications,including merchant ships,Navy warships,engineering

barges,offshoreplantforms.

.Real-time indications via flow mimic diagram

.PLC automatic control in one push button

.Regular chemical dosing&back flushing to ensure best working condition

.High standard R.O. Elements reducing operation cost

Models

.GRRO-5( 5 tons/day)

.GRRO-10( 10tons/day)

.GRRO-25( 25 tons/day)

.GRRO-50( 50 tons/day)

.GRRO-100( 100 tons/day)

.GRRO-1,000( 1000 tons/day)

.Capacity:5~10000 tons/day

Technical Data

Product : 100m3/day

Raw water : ≤35000PPM

Inlet temperature : 5~35°C

PH value of Raw W. : 3.0~10.0

Boosting inlet pressure : 0.1~1kg/cm2 (Positive)

Salt content of product water : ≤500PPM

Desalination rate : ≥98.5%

Product water pressure : ≤0.3Mpa

Recovery : ≈42%

Power supply : 380VAC/50HZ/3φ

Power consumption : ≈2.8KW(Include boost pump)

Control cabinet : 220VAC

Control voltage: 220VAC

IP: IP55

Potential-free extension for running indication and common alarm available.

Insulation class: “F”
