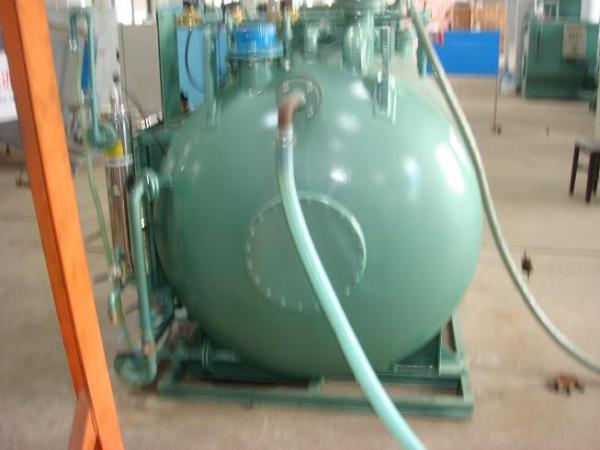

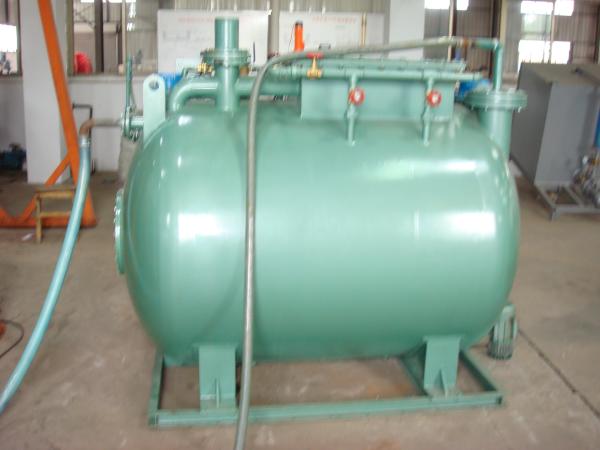

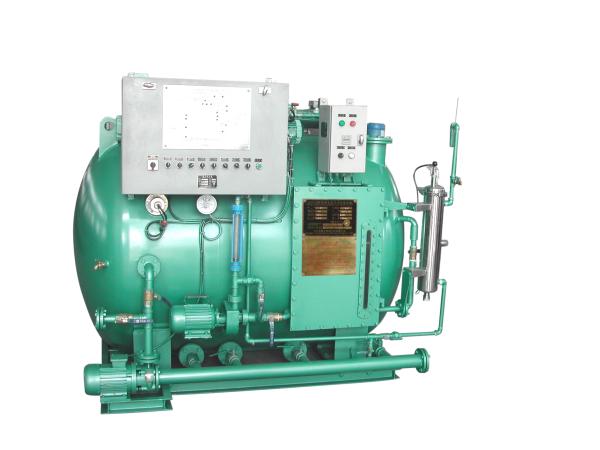

MBR Sewage Treatment Plant with EC Certification
MBR Sewage Treatment Plant with EC Certification
MBR Sewage Treatment Plant with EC Certification
MBR Sewage Treatment Plant with EC Certification
MBR Sewage Treatment Plant with EC Certification
MBR Sewage Treatment Plant with EC Certification
MBR Sewage Treatment Plant with EC Certification
MBR Sewage Treatment Plant with EC Certification
Specifications
Place of Origin :
china
Certification :
CCS ,EC.GL,ABS
Description

SWCM Series Marine Sewage Treatment Plant

- Specification:

a) cted Structure in horizontal with covers in both ends to resistant the pressure

b) automatic control without needs of operator site monitoring in 24 hours

c) internal “MBR” technology to have impact structure to match limited space of cabin.

d) the intermittent aeration in bio-membrane tank and hollow fiber membrane tank, form the process of “aerobic anoxic”, and resolve the problem of “nitrogen and phosphorus removal”.

e) by using “air-lifting” way to transfer the sludge from sediment tank and membrane tank to aeration tank, pump stopped without cutting air supplying, the dirt scale on the membrane come down. The life of membrane can be prolonged at least 8 to 9 years by back flushing and on line clean the membrane patent.

f) the online clean technology also avoid the problem of manual opening and cleaning, as well as replacing the membrane in the narrow space.

g)The Effluent after further treatment can be reached at the requirement of "water recovery'

-Performance

1) Capability of disposed sewage:

a) Black water:excrement and urinefrom toilet

b) Gray Water: waste water form cooking room and bath room

2) It Can be developed to a sewage recycling system

3) EC&CCS Certification

-Technical Data

ModelSWCM
1520253040506080100120150200250300400
Treated LoadAverage Load (L/d)11901540189023103080378044806020770091001120014700182002310030800
Peak Load (L/h)149193237289385473560753963113814001838227528883850
Organic Load (kgBOD5/d)0.5950.770.9451.1551.541.892.243.013.854.555.67.359.111.5515.4
Rated Capacity(P)1520253040506080100120150200250300400
Max Capacity(P)1722273344546486110130160210260330440
ElectricityAC380V-50Hz / AC440V-60Hz
Power(kw)2.252.52.52.5333.5444667911
External Dimensions Length×width×height1850 × 1200 × 14001660 × 1400 × 15501890 × 1400 × 15601980 × 1500 × 16502270 × 1600 × 17002300 × 1700 × 18202650 × 1700 × 18302790 × 1900 × 20502706 × 2000 × 22003000 × 2000 × 22003080 × 2200 × 23003630 × 2200 × 23503880 × 2400 × 25704780 × 2400 × 26005980 × 2400 × 2600
WeightDry weight (kg)100010001100120013001450160018502200230028003000330037004200
Wet weight (kg)22832640274035004400507352706517826891661134013267165382035725417
Discharge StandardTSS<35mg/L;BOD5<25mg/L;COD<125mg/L;Colichin<100/100ml;PH:6-8.5
