Inverted biological microscope with phase contrast
Inverted biological microscope with phase contrast
Inverted biological microscope with phase contrast
Inverted biological microscope with phase contrast
Inverted biological microscope with phase contrast
Inverted biological microscope with phase contrast
Specifications
Place of Origin :
China
Brand Name :
MSHOT
Model Number :
MI12
Certification :
ISO
Description

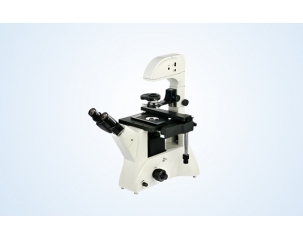

Inverted Biological Microscope with Phase contrast MI12

MI12 is a Inverted biological microscope with phase contrast device, it adopts excellent infinity optical system with long working distance plan objectives and wide field eyepiece. The microscope body is anti-shock with stable and rigidity . The swing-in and swing-out type condenser system is convenience for microscopy observation of non-contaminated cultured cells in the high culture dish or the cylindrical flask.

Ergonomics design of the inverted microscope makes the operation convenient and comfortable when using at laboratory. MI12 inverted microscope is widely applicable in the microscopy observation of cells tissue and transparent liquid tissue as well dynamic observation of culture tissue in the culture dish. It is ideal to use at scientific institute, universities laboratory, medical school, agriculture and dairy farming, etc.

MI12 inverted fluorescent microscope Specification:

Eyepiece

Wide field WF10X(field number:22mm)

Centering telescope

Infinity and long working distance plan achromatic objective

.Objectives

PLL 10X0.25 WD: 4.3 mm, cover glass thickness:1.2mm

PLL 20X0.40 WD: 8.0 mm, cover glass thickness:1.2mm.

PLL 40X0.65 WD:3.5 mm, cover glass thickness:1.2mm.

Phase Contrast Objective

PLL 10X0.25 PHP2 WD:4.3 mm, cover glass thickness:1.2mm.

Observation tube

45° inclined, interpupillary distance 53~75mm.

Focusing system

Coaxial coarse/fine focus system, tensional adjustable, with adjustment limit stop, minimum graduation in fine movement: 2μm.

Nosepiece

Quintuple nosepiece

Stage

Fixed stage overall size is 227mmX208mm

Glass rotundity stage overall size is Ф118mm

Mechanical moving device, moving range is 77mm (longitudinal)X114mm (transverse)

Culture dish holder 1

Inside locating slot size: 86mm (W)X129.5mm (L), optional with a circular culture dish Ф87.5mm

Culture dish holder 2

Inside locating slot size: 34mm (W)X77.5mm (L), optional with a circular culture dish Ф68.5mm

Culture dish holder 3

Inside locating slot size::57mm (W)X82mm (L)

Condenser system

Long working distance condenser, working distance: 55mm, and with turnplate phase contrast unit

Illumination system

6V30W halogen, brightness adjustable

Filter

Frosted glass and blue , green filter
