Scientific grade Inverted fluorescent microscope with phase contrast
Scientific grade Inverted fluorescent microscope with phase contrast
Scientific grade Inverted fluorescent microscope with phase contrast
Scientific grade Inverted fluorescent microscope with phase contrast
Scientific grade Inverted fluorescent microscope with phase contrast
Scientific grade Inverted fluorescent microscope with phase contrast
Specifications
Place of Origin :
China
Brand Name :
MSHOT
Model Number :
MF53
Certification :
ISO,CE,FCC
Description

Inverted Fluorescence Microscope MF53

MF53 is a high end inverted fluorescence microscope close to scientific grade developed by Mshot, performance equivalent with Olympus CKX41. The microscope adopts excellent quality Infinity Independent Achromatic Optical System to make sure better fluorescence imaging. Meanwhile, MF53 also support phase contrast observation, simple polarization and photographic microscopy observation. MF53 inverted fluorescent microscope is ideal for live cell laboratory microscopy imaging.


MF53 Inverted Fluorescent Microscope Benefits:

  • Excellent Infinity Independent Achromatic Optical System offer outstanding imaging.

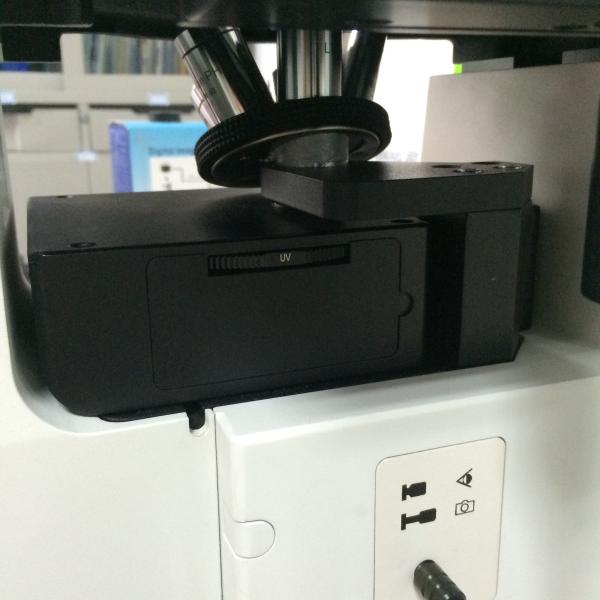

  • Wheel turnplate to change filter cube.
  • High quality Chroma filters offer excllent fluorescent.
  • Phase contrast objective 10X, 20X with 4X, 40X optional.
  • High quality 100W/DC mercury lamp as illumination offering 200 hours working time.
  • 0.001mm fine adjusting handle scale value.
  • C-mount adapter on the left side of the microscope body offer engouh space for various kinds of digital cameras.
  • 72mm long working distance condenser offer sufficient space for different sizes petri dish.

Scientific grade Inverted fluorescent microscope with phase contrast Scientific grade Inverted fluorescent microscope with phase contrast Scientific grade Inverted fluorescent microscope with phase contrast

Data sheet:

Item Specification Quantity
Eyepiece Head Binocular observation tube, 30°inclined, interpupillary width adjust range 52-75mm, diopter adjustable 1
Eyepiece WF10X/20 plan eyepiece, high eyepoint 2
Centering telescope 1
Objective (infinity long distance objective) 10X infinity long working distance plan achromatic objective. NA0.25 WD9.67 1
20X infinity long working distance plan achromatic objective. NA0.40 WD7.97 1
40X infinity long working distance plan achromatic objective. NA0.40 WD7.97 1
20X infinity long working distance plan phase-contrast positive objectives. NA0.40 WD7.97 1
Focus system Coaxial coarse and fine with limit and locking devices, low coaxial focus adjusting handle, fine adjusting handle scale value 0.001mm, focusing more accurate. 1
Converter Quintuple revolving nosepiece with bearing inner location and anti-fungus device 1

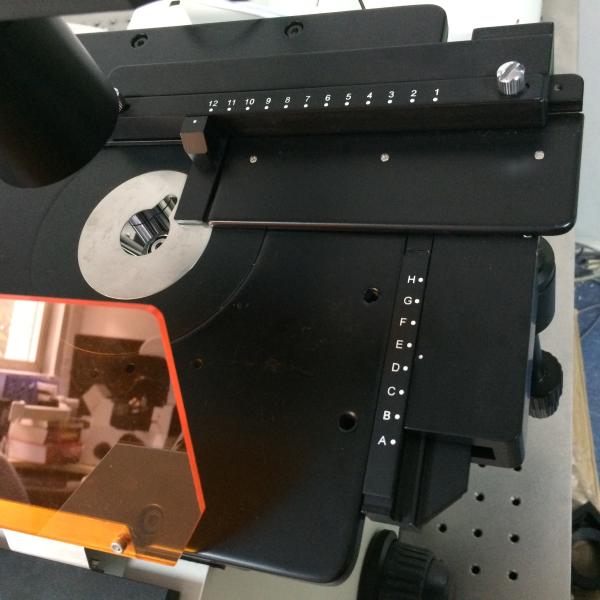

Stage Fixed stage 240mmX260mm; with low-positioned X/Y coaxial control knob, moving range 135mmX85mm, with water drop slide (Φ118)and multifunction slide holder(76X26,Φ60) 1
Epi fluorescent equipment Multifunctional fluorescent semi-reflector 1
Mercury lamp housing 1
100W/DC mercury lamp 1
Power box: AC 10V or 220V 1
UV excitation fluorescence unit UV excitation waveband: 420~485nm 1
Blue excitation fluorescence unit B excitation waveband: 460~550nm 1
Green excitation fluorescence unit G excitation waveband: 460~550nm 1
Condenser Condenser: long working distance condenser 72mm, NA 0.30, equipped with three holes phase contrast ring plate with yellow, green and blue filter groups 1
Transmitted light illuminator Adopts built-in aspheric lens, 6V30W Osram halogen lamp, universal voltage 110-240V,50/60Hz, specialized power box 1
Optical interface 0.5x C-mount adapter
Spare lamp 6v 30w halogen lamp 1

*Optional fluorescence illumination: Blue and Green filter cubes in LED fluorescence light source.
