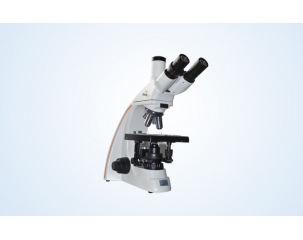

Trinocular Biological microscope
Trinocular Biological microscope
Trinocular Biological microscope
Trinocular Biological microscope
Trinocular Biological microscope
Trinocular Biological microscope
Specifications
Place of Origin :
China
Brand Name :
MSHOT
Model Number :
ML32
Certification :
ISO
Description

Biological Microscope ML32 is equipped with infinity optical system. The plan achromatic objectives and wide field eyepiece offer wide and clear field of view. This biological microscope has beautiful appearance and easy to operate in labs. It is an ideal laboratory microscope for education, health care, scientific research and other reasearch institutes.

ML32 Biological Microscope Features:

  • Excellent infinity optical system.
  • Ellegent design matched with soft colors is more aesthetic.
  • Ergonomic design is more convenient and comfortable to use in a wider space.

Eyepiece

Wide field WF10X(Φ22mm)

Objective

Infinity plan achromatic objective

PL 4X/0.10 WD:19.8 mm

PL 10X/0.25 WD:5.0 mm

PL 40X/0.65 (spring) WD:0.66 mm

PL 100X/1.25 (spring, oil) WD: 0.36mm

Eyepiece tube

Trinocular, 30°inclined

Focusing system

Coaxial coarse and fine adjustment, with adjustment limit stopper, minimum graduation in fine movement: 2μm

Nosepiece

Quadruple (backward ball bearing inner locating)

Stage

Double layer mechanical (size:193mm*155mm, moving range:75mm*50mm)

Transmitted illumination system

Abbe condenser NA.1.25 up and down adjustable

High-bright white LED, brightness adjustable
