Epi fluorescent microscope for tuberculosis diagnostic
Epi fluorescent microscope for tuberculosis diagnostic
Epi fluorescent microscope for tuberculosis diagnostic
Epi fluorescent microscope for tuberculosis diagnostic
Epi fluorescent microscope for tuberculosis diagnostic
Epi fluorescent microscope for tuberculosis diagnostic
Specifications
Place of Origin :
China
Brand Name :
MSHOT
Model Number :
MF10-LED
Certification :
ISO9001,CE,FCC
Description

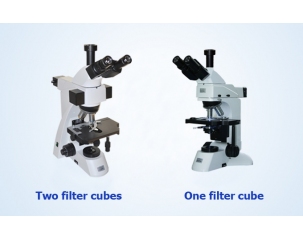

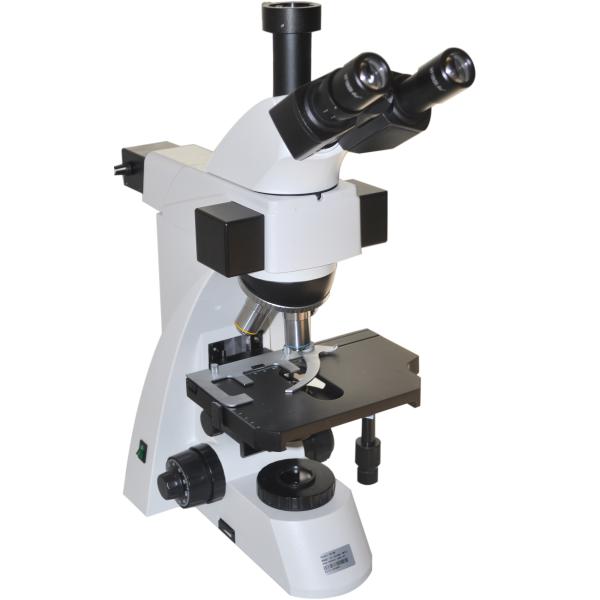

MSHOT MF10-LED epi-LED fluorescence microscope is a combination of infinity optical biological microscope with modular epi-fluorescence illuminator in LED light source. It is a good choice for health center, clinical laboratories, disease control center and other scientific research departments.

Since LED epi-fluorescence microscope was pointed as the most suitable microscope for TB diagnostic by WHO,it is widely used in basic clinical laboratories especially for immunofluorescence and microbiology.


Benefits of MF10-LED fluorescence microscope

  • Excellent infinity optical system, outstanding resolution and definition.
  • No need to preheat, can operate immediately after starting up.
  • LED light source in cold illumination, no heat
  • Longer working life than mercury
  • Ergonomics design easy to install and use


Epi fluorescent microscope for tuberculosis diagnostic

Item No.

MF10-LED (BG)

MF10-LED(RB-G)

MF10-LED(RB)

MF10-LED(B)

MF-BG-LED(UV)

Suitable application

Malaria /GFP / EGFP / FITC /

Alexa 488 / Cy2@ /

Fluo-4 / FluorX@ / Fluoro-Jade/ PI / EB / EH

TB Diagnosis /

PI / EB / EH

TB Diagnosis

Malaria/GFP / EGFP / FITC /

Alexa 488 / Cy2@ /

Fluo-4 / FluorX@ / Fluoro-Jade

DAPI /

Hoechst 33342&33258 /

AMCA/AMCAX /

Alexa 350

Eyepiece

Wide field WF10X(Φ20mm)

Objective

Infinity PL 4X/0.1 WD: 19.8

Infinity PL10X/0.25 WD: 5.0 mm

Infinity PL 40X/0.65 (spring) WD: 0.66 mm

Infinity PL 100X/1.25 (spring, oil) WD: 0.36 mm

Observation head

trinocular, inclination of 30°, light path: 0, 100%

LED

fluorescence

illuminator

Exciter color: Blue

Exciter color: Royal blue

Exciter color: Royal blue

Exciter color: Blue

Exciter color: UV

EF 460nm~490nm,

DM >500nm,

BF >510nm

EF 420nm~480nm,

DM >500nm,

BF >510nm

EF 420nm~480nm,

DM >500nm,

BF >510nm

EF 460nm~490nm,

DM >500nm,

BF >510nm

EF 330nm~380nm,

DM >400nm,

BF >420nm

Exciter color: Green

Exciter color: Green

EF 510nm~550nm,

DM>570nm,

BF>590nm

EF 510nm~550nm,

DM>570nm,

BF>590nm

Focus system

Coaxial coarse and fine adjustment, with adjustment limit stopper, Minimum graduation in fine movement: 2μm, moving distance: 20 mm

Nosepiece

Quadruple (Fixed nosepiece with backward inclined)

Stage

Double layer mechanical (size: 193mm*155mm, moving range: 75mm*50mm)

Condenser

Abbe condenser NA. 1.25 up and down adjustable

Illumination system

6V/30W halogen lamp, brightness adjustable

Optical interface

1X C-mount adapter

Fuse

250V 0.5A

Power line

Three-pin plug

Optional Accessories

Eyepiece

Wide field WF 16X (FN:11mm)

Head

Binocular heard (inclination of 30°), light pass: 0/ 100%

Filters

Yellow,Green

Transmitted illumination

3W LED
