digital microscope CMOS camera for microscope
digital microscope CMOS camera for microscope
digital microscope CMOS camera for microscope
digital microscope CMOS camera for microscope
digital microscope CMOS camera for microscope
digital microscope CMOS camera for microscope
Specifications
Place of Origin :
China
Brand Name :
MSHOT
Model Number :
MD30-2
Certification :
ISO9001,CE,FCC
Description

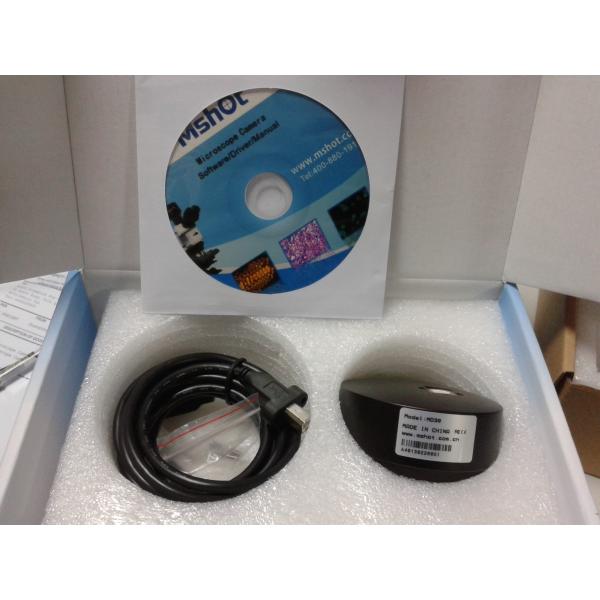

MD30 - MSHOT CMOS Microscope Camera with 3 megapixel


Combining the advanced optical microscopy and computer image processing technologies, Mshot proudly presents you the economical digital cameras MD30. With the design of large arrays of photosensitive CMOS and auto exposure, MD30 is compatible with any microscope to work as a digital microscope. Nowadays, it is widely used in industrial QC, health care, teaching and research fields.

Key parameters:

  • 3.0 megapixels, progressive scanning CMOS sensor.
  • No compression, no interpolation.
  • Support still image capture(JPG,BMP)
  • 15 fps at 1600x1200 pixel; 30 fps at 800x600 pixels.
  • USB2.0 interface, up to 480MPS, external power no need.
  • Standard C-MOUNT.

Feature:

  • Interfaced to a computer via USB2.0 technology for rapid image download.
  • 3.0 megapixels with progressive scanning CMOS image sensor.
  • Plug-to-use, suitable for shooting of any standard biological, stereo and metallurgical microscopes.
  • Ease of operation, only take 5 minutes to master the friendly software.
  • Standard C-Mount makes connection to any microscope easy. Macro lens setups are also supported
  • Fully integrated package with digital camera and imaging software for managing your imaging work flow.
  • Data can be shared, stored and edit, real-time preview function offers you the greatest experience with the microscope.
  • Video taping is available, simple to store and transfer when compression mode is selected;

MD30 Camera Specifications

Sensor1/ 2" CMOSSensitivity1.0 V/ lux-sec (550nm)
Resolution2048×1536(10bit)Data InterfaceUSB2.0 (480 Mbit / sec)
Pixels Size3.2μm×3.2μmPower SupplyDC 5V ± 5%
Frame Rate8fps @ 2048*1536Electricity≈200 mA
40fps @ 640*480
15fps @ 1024*768		White BalanceManual/Auto one-touch
ShutterElectronicExposure control10μs–32ms,Auto exposure
S/N Ratio43 dBSoftwareDisplay/Film/Video
Scanning ModeProgressive scanningOperating Temp0°C ~ 60°C
