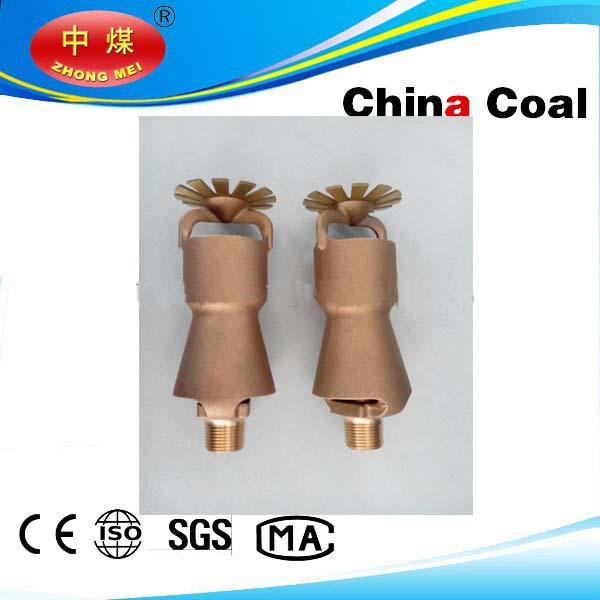

Fire sprinkler with UL&FM
Fire sprinkler with UL&FM
Specifications
Place of Origin :
China
Brand Name :
chinacoal
Certification :
ISO9001,CE
Description

Product Introduction:

SPRINKLER MATERIALS

Frame

Bronze Forging DZR

Deflector

Brass UNS-28000

Glass Bulb

Glass with Glycerin Solution, JOB® G5 or F3

Set Screw

Brass UNS-28000

Button

Brass UNS-28000

Spring

Stainless Steel

Seal

Teflon® Tape

Standard Escutcheon(Type E-1)

Cold Rolled Steel

TECHNICAL SPECIFICATION

Model & Sprinkler I.D. No.

SH005

SH006

Style

Pendent

Bulb Nominal Dia. & Response

5mm, Standard Response or

3mm, Quick Response

Thread Size [Optional]

NPT1/2 or R1/2

Nominal Orifice Size

1/2 Inch

Nominal K-Factor

5.6 (U.S.)/80 (metric)

Max. Working Pressure

175 psig/1.2 mpa (12 bar)

Factory Hydrostatic Test

100% @ 500psig (3.4 mpa)

Min. Operating Pressure

7 psig/0.048 mpa (0.48 bar)

Sprinkler Finish [Optional]

Natural Brass, Chrome Plated or White Color Coated

Escutcheon Finish

Chrome Plated or Color Coated In Any Color

Listings and Approvals

UL(United States)/ULC(Canada)
