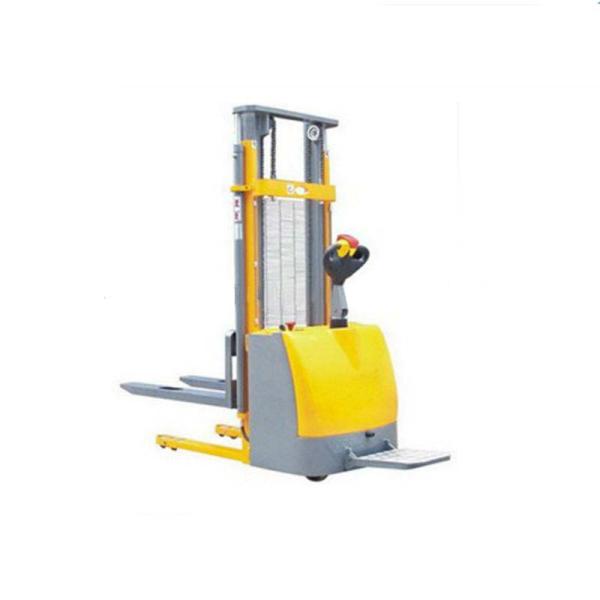

Electric Pallet Stacker Have High Quality
Electric Pallet Stacker Have High Quality
Specifications
Place of Origin :
China
Brand Name :
chinacoal
Certification :
ISO9001,CE
Description

Product introduction

1).Use the circular arc camber modeling

2). Good stability and mobility, can also walk in the concave-convex road surface freely

3). According to man-machine engineering design operating system

4). Use the advanced separate excitation control system

5) The main electrical element, hydraulic pump and so on apply with the international first-class technology

Main parameter

SPECIFICATIONS:

Model
Parameters

CTQ

10/16,15/16,20/16

10/20,15/20,20/20

10/25,15/25,20/25

10/30,15/30

Drive unit

/

Electric

Load Capacity

Kg

1000,1500,2000

1000,1500,2000

1000,1500,2000

1000,1500

Load center

Q,mm

550

Mast torm

/

Single door frame /Single tank

Two-door frame /

Two-tank

Front type dimensions

mm

Φ80*60

Rear type dimensions

mm

Φ130*55

Traction wheel

mm

Φ250*80

Lift height

H2,mm

1600

2000

2500

3000

Forks clearance from the ground

H5,mm

80--90

Extended height

H3,mm

2080

2500

3000

3500

Closed height

H1,mm

2080

1580

1850

2080

Fork dimensions

L3,mm

1150*160*50

Total length

L1,L2 mm

2070,2300

Total width

B,mm

815

Maximum forks width

B1,mm

680

Turming radius(Open pedal)

R1 mm

1600

Truck weight(without battery)

Kg

780

880

930

980

Battery charger

/

AC220V/50Hz/DC24V/40A
