LC 10GB SFP+ Module SFP-10G-ER SFP+ packaging
LC 10GB SFP+ Module SFP-10G-ER SFP+ packaging
Specifications
Place of Origin :
China
Brand Name :
DONGWE
Certification :
CE, FCC, RoHS
Model Number :
DW-D9655-40C
Description

Quick Details

Place of Origin: China (Mainland) Brand Name: DONGWE Model Number: DW-D9655-40C
Condition: New Package: SFP+ Connector: Duplex LC
Fiber Type: Single Mode Fiber(SMF) Data Rate: 10G Wavelength: 1550nm
Distance: 40km Warranty: 3 Years DDM/DOM: with
Label: Can be customized

Packaging & Delivery

  • Packaging Details: 5pcs, 10pcs, 20pcs//package, In Carton Box
  • Delivery Details: 3-7 working days

LC 10GB SFP+ Module SFP-10G-ER SFP+ packaging

Features of LC 10GB SFP+ Module

  • Compliant with SFF-8431,SFF-8432 and IEE802.3ae
  •   10GBASE-ER, and 2G/4G/ 8G/10G Fiber Channel applications.
  •   Cooled EML transmitter and PIN receiver
  •   link length up to 40km
  •   Low Power Dissipation 1.5W Maximum
  •   -5ºC to 70ºC Operating Case Temperature
  •   Single 3.3V power supply
  •   Diagnostic Performance Monitoring of module temperature, supply Voltages, laser bias current, transmit optical power, receive optical power
  •   RoHS6 compliant and lead free

Applications

  •   10GBASE-ER (with/without FEC)
  •   10G Fiber Channel (with/without FEC)

Product description

DONGWE SFP+ER 1550nm Transceiver is a “Limiting module”, designed for 10GBASE-ER, and 2G/4G/
8G/10G Fiber- Channel applications.
The transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And
the receiver section consists of a PIN photodiode integrated with a TIA. All modules satisfy class I laser safety
requirements. Digital diagnostics functions are available via a 2-wire serial interface, as specified in
SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature,
laser bias current, transmitted optical power, received optical power and transceiver supply voltage.
Ordering Information
Part Number Product Description
SFP+ Module
DW-D9685-03C SFP+, 10G, 850nm, 300m, 0ºC ~ +70ºC
DW-D9631-03C SFP+, 10G, 1310nm, 300m, 0ºC ~ +70ºC
DW-D9631-10C SFP+, 10G, 1310nm, 10km, 0ºC ~ +70ºC
DW-D9631-20C SFP+, 10G, 1310nm, 20km, 0ºC ~ +70ºC
DW-D9655-40C SFP+, 10G, 1550nm, 40km, 0ºC ~ +70ºC
DW-D9655-80C SFP+, 10G, 1550nm, 80km, 0ºC ~ +70ºC
BIDI SFP+
DW-S9623-10C SFP+, 10G, 1270/1330, 10km, 0ºC ~ +70ºC
DW-S9632-10C SFP+, 10G, 1330/1270, 10km, 0ºC ~ +70ºC
DW-S9623-20C SFP+, 10G, 1270/1330, 20km, 0ºC ~ +70ºC
DW-S9632-20C SFP+, 10G, 1330/1270, 20km, 0ºC ~ +70ºC
DW-S9623-40C SFP+, 10G, 1270/1330, 40km, 0ºC ~ +70ºC
DW-S9632-40C SFP+, 10G, 1330/1270, 40km, 0ºC ~ +70ºC
DW-S9623-60C SFP+, 10G, 1270/1330, 60km, 0ºC ~ +70ºC
DW-S9632-60C SFP+, 10G, 1330/1270, 60km, 0ºC ~ +70ºC
CWDM SFP+

DW-D96Cxx-10C

(xx=27/29/31/33)

 CWDM SFP+, 10G, 1270~1330nm, 10km, 0ºC ~ +70ºC

DW-D96Cxx-40C

(xx=47~61)

 CWDM SFP+, 10G, 1470~1610nm, 40km, 0ºC ~ +70ºC

DW-D96Cxx-80C

(xx=47~61)

 CWDM SFP+, 10G, 1470~1610nm, 80km, 0ºC ~ +70ºC
DWDM SFP+

DW-D96Dxx-40C

(xx=17~61)

 DWDM SFP+, 10G, 1528.77~1563.86nm, 40km, -5ºC ~ +70ºC

DW-D96Dxx-80C

(xx=17~61)

 DWDM SFP+, 10G, 1528.77~1563.86nm, 80km, -5ºC ~ +70ºC

Compatible Brand

LC 10GB SFP+ Module SFP-10G-ER SFP+ packaging

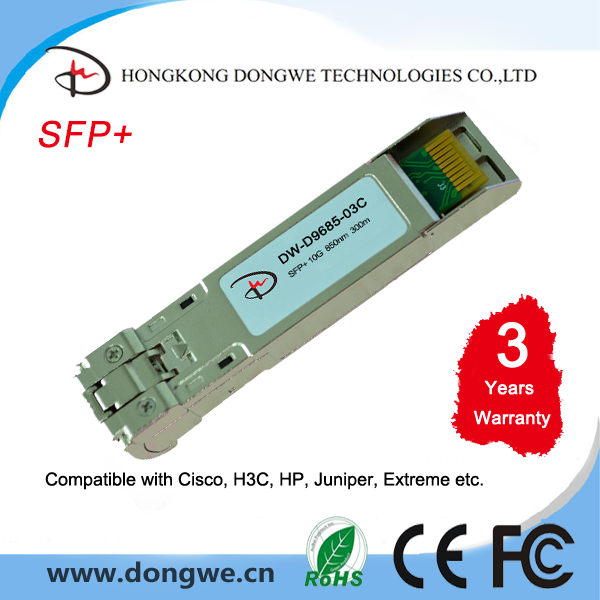

Product Serial

LC 10GB SFP+ Module SFP-10G-ER SFP+ packaging LC 10GB SFP+ Module SFP-10G-ER SFP+ packaging LC 10GB SFP+ Module SFP-10G-ER SFP+ packaging LC 10GB SFP+ Module SFP-10G-ER SFP+ packaging
LC 10GB SFP+ Module SFP-10G-ER SFP+ packaging LC 10GB SFP+ Module SFP-10G-ER SFP+ packaging LC 10GB SFP+ Module SFP-10G-ER SFP+ packaging LC 10GB SFP+ Module SFP-10G-ER SFP+ packaging
LC 10GB SFP+ Module SFP-10G-ER SFP+ packaging LC 10GB SFP+ Module SFP-10G-ER SFP+ packaging LC 10GB SFP+ Module SFP-10G-ER SFP+ packaging

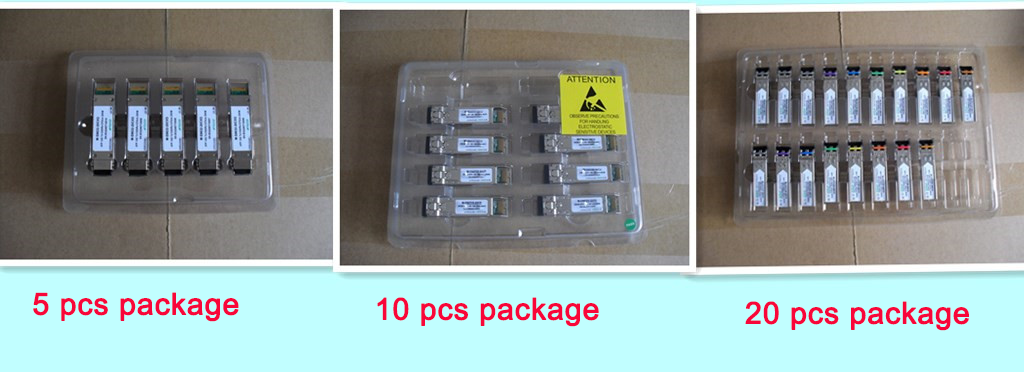

Package

LC 10GB SFP+ Module SFP-10G-ER SFP+ packaging

Shipment

International Express: DHL, FedEx, UPS, TNT and EMS optional

Factory Show

LC 10GB SFP+ Module SFP-10G-ER SFP+ packagingLC 10GB SFP+ Module SFP-10G-ER SFP+ packaging

Our Service

  1. Competitive price
  2. 3 years warranty
  3. Reply your inquiry within 2 hours
  4. Have large quantity modules in stock, delivery fast
  5. Label can be customized, also ODM and OEM service offered
  6. 100% new material and good quality
  7. Can be compatible with a lot of brands like Cisco, HP, H3C, Extreme, Juniper etc.
  8. Capacity: 10,000pcs/day
