Specifications
Place of Origin :
China
Description

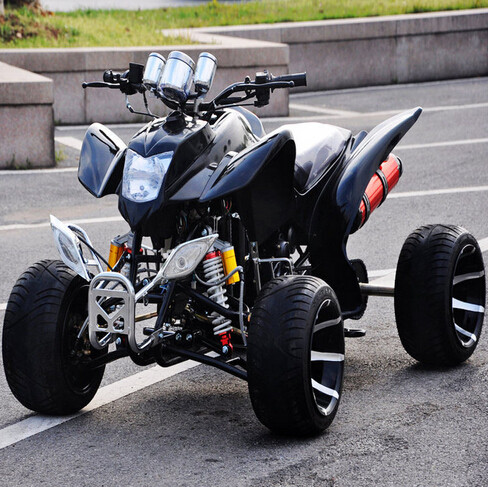

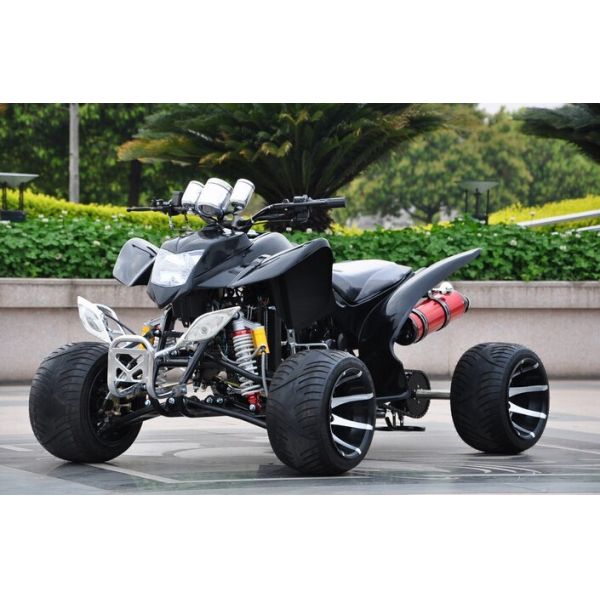

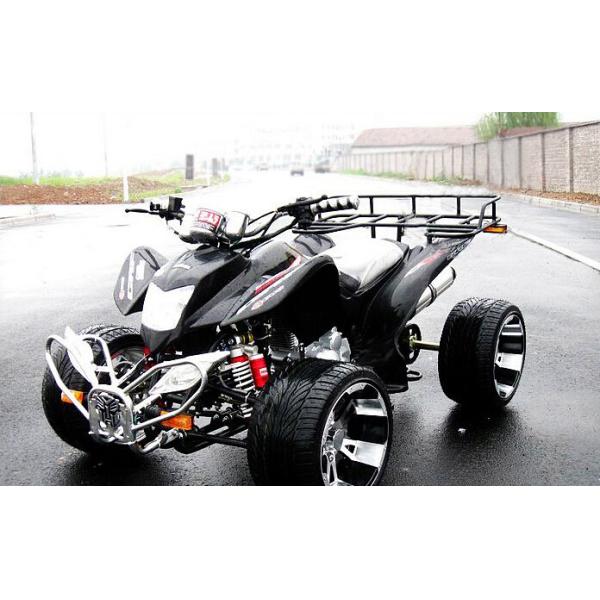

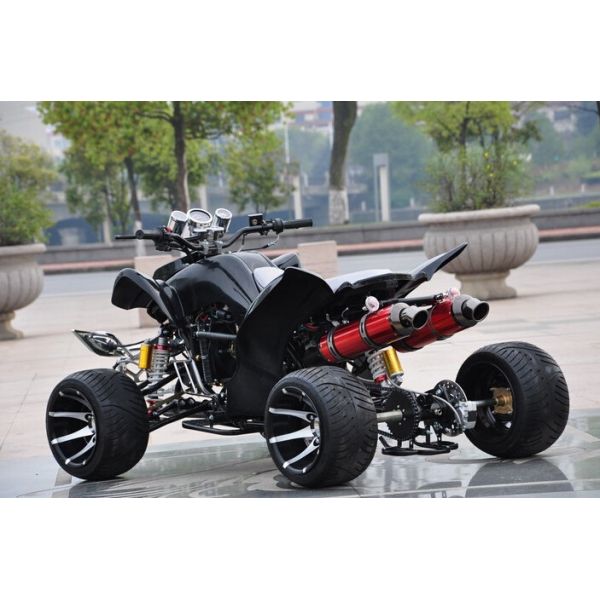

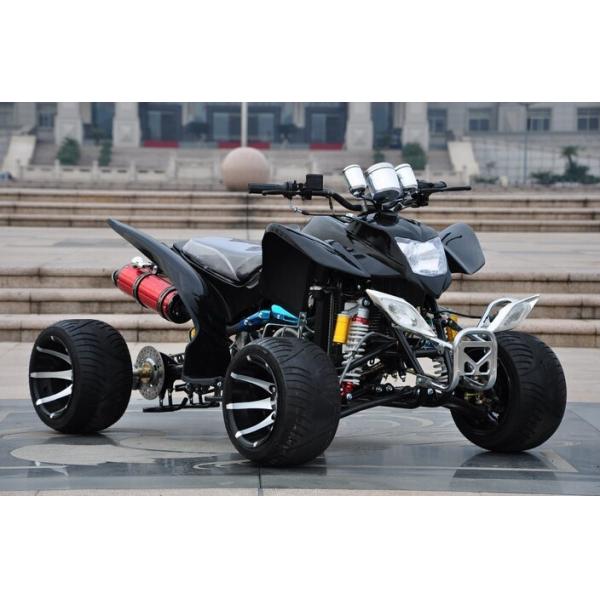

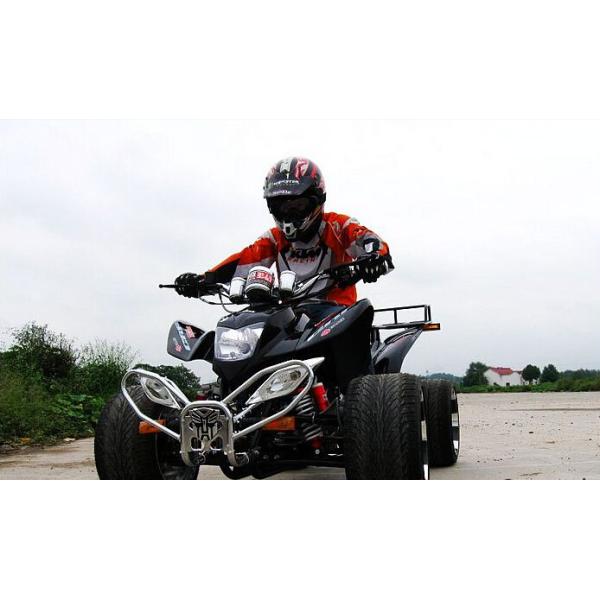

Model: China ATV250CC02

Approve mode:EEC EPA DOT
Product description:
(1)Engine Type: 250cc,water-cooling,4-stroke,single cylinder
(2)Transmission: 4 gears with one reverse gear,manual cluth
(3)Ignition mode: CDI
(4)Compression propor 9.2:1
(5)Max Power: 15.2KW/7,500rpm
(6)Max.torque: 18.6N.m/6,000rpm
(7)Displacement: 246ml
(8)Start mode: electric
(9)Tranmission mode: chain
(10)Min.ground clearance: 100mm
(12)Max.speed: >80km/h
(13)Power source: 12V,9AH
(14)Fuel tank capacity: 4L
(16)Front wheels: 235/30-R12
(17)Rear wheels: 235/30-R12
(18)Break type(F/R): disc/disc
(19)Front hanging: double arm-swing
(20)Muffler: double stainless muffler
(21)Dimensions
(22)product dimensions: 1950x1060x960mm
(23)carton dimensions: 1680x960x800mm
(24)wheelbase: 1380mm
(25)height of seats: 680mm
(26)dry weight: 167kg
(27)load capacity: 105KG
(28)climbing degree: >20
(29)Container:18pcs/20"QTY,39pcs/40"QTY,53pcs/40HQ
