Transformer turns ratio tester
Transformer turns ratio tester
Specifications
Place of Origin :
Wuhan, Hubei, China
Brand Name :
Huaying
Certification :
ISO
Model Number :
HYBC-901
Description

It is to test voltage ratio, vector, polarity, ratio error of current transformer and voltage transformer.

Transformer turns ratio meter functions:

1

The voltage ratio measurement for three or singe phase transformer

2

The group vector measurement for three phase transformer.

3

The polarity measurement for single phase transformer or CT/PT

4

Voltage ratio error calculation

5

Current transformer ratio measurement

6

Excitation current measurement in ratio testing

7

Reproduction the AC test voltage from power source to reduce the effects of bad power source

8

Save the test results in the memory internal the tester

9

Print the test results by micro printer

10

Reverse connection detect unit to prevent the high voltage injected to operator

11

Over current protection unit integrated in software and hardware

12

Upload the test results to PC by RS232 and make word report by software

Tansformer turns ratio meter technique index:

1

Ratio measurement range:1~10000

2

Group measurement:1~12

3

Phase measurement error:1 degree

4

Ratio measurement error:1~2000 ± 0.2%RDG 2000~10000 ± 0.5%RDG

5

Test voltage:0~80V

6

Power supply:AC220V ± 10%, 50Hz/60Hz

7

Size 400´350´200 mm3 Weight 7kg Humidity: ≤85%RH

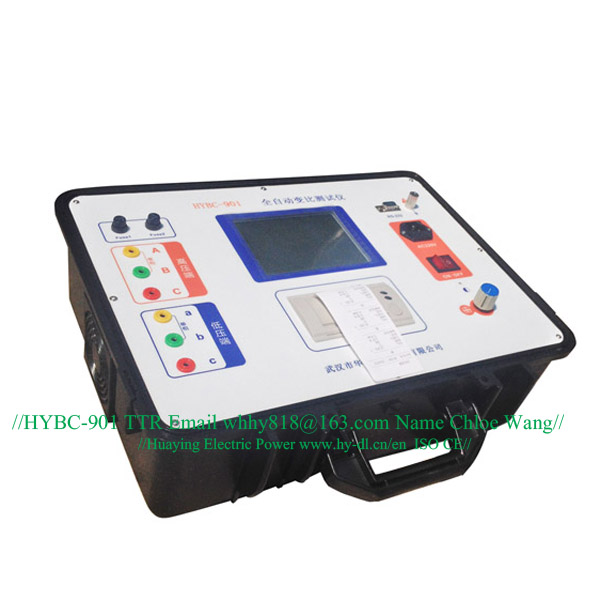

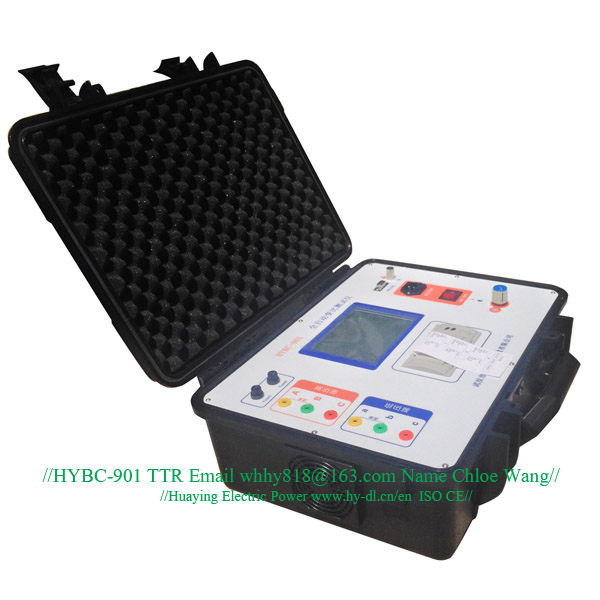

Transformer turns ratio testerTransformer turns ratio tester
