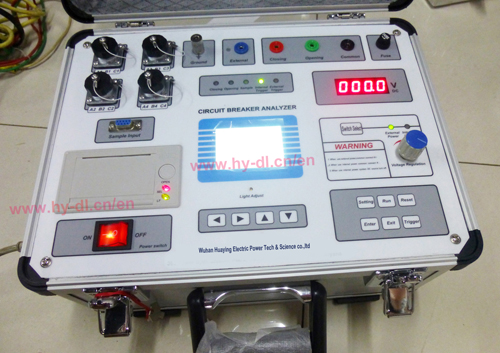

HYGK-303 Circuit Breaker Analyzer
HYGK-303 Circuit Breaker Analyzer
Specifications
Description

Circuit breaker tester equipment test items

Closing and opening time measurement of 12 channels

Max difference of closing or opening time measurement of three phases

Bounce time and frequency measurement of breaker closing

Circuit breaker closing and opening speed measurement

Travel-time, Coil current-time curve of circuit breaker operation measurement

Clearance of circuit breaker measurement

Variable DC circuit breaker operation power supply

Print test results by internal micro printers

Circuit breaker tester technique index

Time measurement range: 6000ms, resolution 0.1ms

Time measurement error: <1%RDG+0.2ms

Speed measurement:

Range 2m/s resolution 0.01m/s max error<0.1m/s

Range 20m/s resolution 0.01m/s max error<0.2m/s

Travel measurement: Range 250.0mmresolution 1mmmax error 1mm

DC Power out: DC30V~250V/10A (instantaneous)

Travel sensors configuration: grating and angle

Test standard: IEC62271

LCD: 128*64

Power supply: AC220V±10% 50Hz/60Hz

Temperature: 0~50°C humidity: <85%

HYGK-303 Circuit Breaker Analyzer

HYGK-303 Circuit Breaker Analyzer

Please download the circuit breaker analyzer datasheet below.
