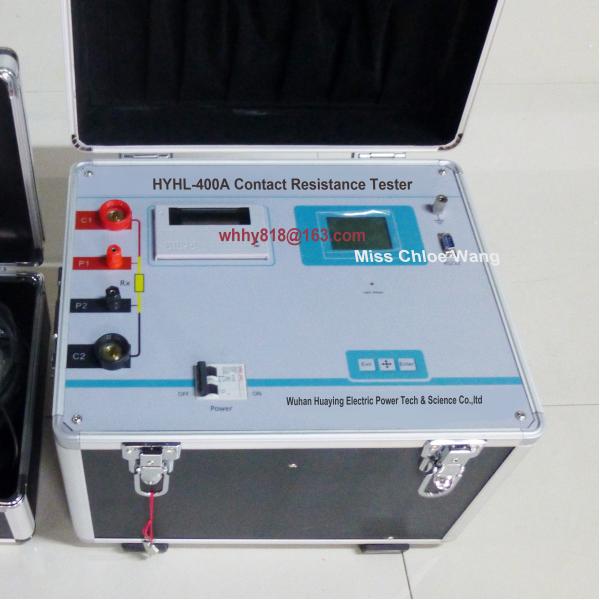

400A Contact resistance tester
400A Contact resistance tester
Specifications
Place of Origin :
Wuhan,Hubei,China
Brand Name :
Huaying
Certification :
ISO
Model Number :
Huaying
Description

Product Description

Contact resistance tester output DC 100A/400A current to test the sample resistance. It is designed according to IEC62271. The main application of the tester is measurement of circuit breaker contact resistance. All the test results of the tester could be print by the micro-printer which is integrated in the tester. Also all the test results saved in the tester could be upload to PC computer and then convert to MS WORD document.

2 Functions

1 Rapid test

2 Result print

3 Upload data to PC

3 Technique index

1. Measuring range: 0-1999.9 μΩ Resolution:0.1 μΩ

2. Measuring current: DC 100A/200A/400A for different selection

3. Measuring precision:0.5 %RGD+0.05%FS

4. Display mode: LCD

5. Save no more than 100 groups of data

6. RS232 computer interface

7. Rated power supply:AC220V

8. Size: 340 × 280 × 210mm3

9. Environment temperature:-10 ℃~+40 ℃ Relative humidity<80%

Contact resistance tester 400A and 600A panel is the same.

400A Contact resistance tester

400A Contact resistance tester

HYHL Series

100A 200A Contact resistance tester Panel same:

400A Contact resistance tester

400A 600A Contact resistance tester Panel same:

400A Contact resistance tester

Please tell us which model you would like: whhy818@163.com Chloe Wang

100A Contact resistance tester

200A Contact resistance tester

400A Contact resistance tester

600A Contact resistance tester
