1.Specifications:

Image device:1/4 CMOS, Lens HM1375

Resolution: 1280x720(720P),640×480(VGA), 320×240(QVGA)

Minimum illumination: 0.1LUX

SNR: ≥50db

Gain control: Automatic

White balance: Automatic

Lens port: C/CS port

Audio compression: PCM/MP3

Network:WIFImodule W2M30003V3P With shielding box

Network:TCP/IP,HTTP,DHCP,DNS,PPPoE,NTP,SNMP,DDNS,SMTP,RTP,P2P,FTP,SMTP

Network port: RJ45 / WIFI

RS 485 interface:1 channel, halfduplex RS485, Support transparent channel connection, Support for multiple yuntai agreement

Port: PCB board 2*40.5*1.6mm 4 tier Copper foil thickness: 35um Immersion Gold :0.05um

Audio input: 1channel Line In, 3.5mm audio interface ,support voice dialogue

Audio output: 1channel Line out, 3.5mm audio interface ,support voice dialogue

I/0 port: 6pin(one channel Alarm input port , one channel Alarm output port ,RS485 port)

localstorage: 1 SD card,support standard SD,SDHC memory card ,max 32GB

Operating temperature: 10°C ~ +50°C

Operating humidity: Less than 90% (no condensation)

Power Consumption: ≤3W

Compatible: Windows, Mac, I Pad, I Phone, Android

2.Function

Motion detection: Support hardware window, multizone, Do not take up system resources

Support dualstream/ Support video area shade/ Free online dynamic DNS

Alarm detecting: motion detection, Video loss, Network disconnection, Screen cover, Sensor linkage

Warning function: Linkage alarm output; Yuntai linkage;client warning

P2P function: client, ANDROID,IOS

Install easily, plug with the power, use by the network

Step 1. Connect the web, plug with the power.

Step 2: Install the client soft

1. Use CD-Rom to install

2. Download the soft in the net to install

Step 3: Input the account and password, you can use at once

Optional: Configure wireless WiFi access password

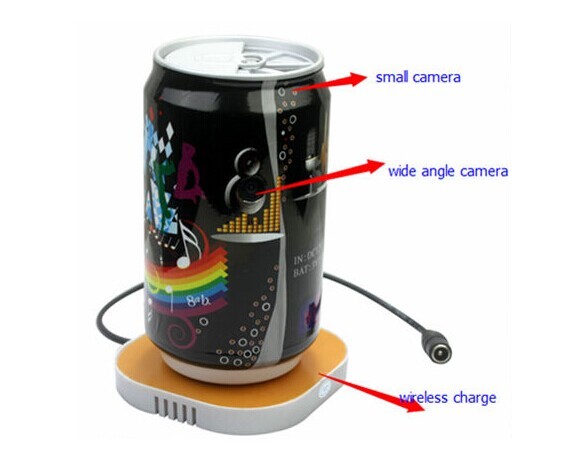

3.The samples:
