Specifications
Place of Origin :
China
Brand Name :
Sourcechip
Model Number :
SC-DLE015W01
Certification :
CE, FCC, RoHS, UL
Contact E-mail :
sales008@sourcechip.com
website 1 :
http://www.sc-ledlights.com/
website 2 :
http://www.sc-leddownlights.com/
Description

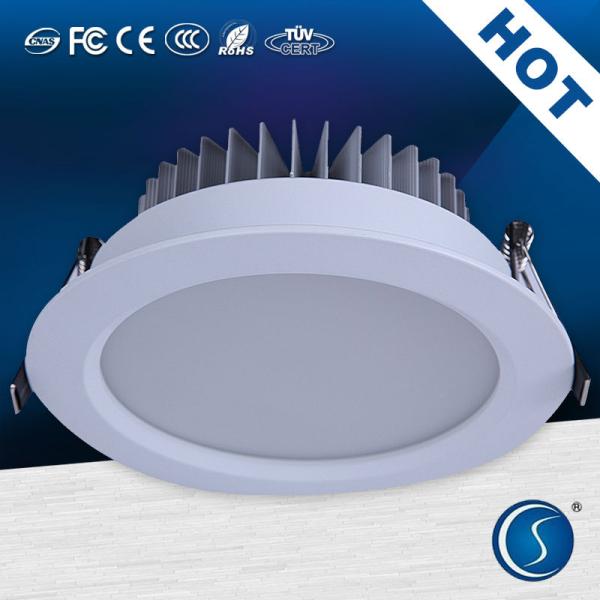

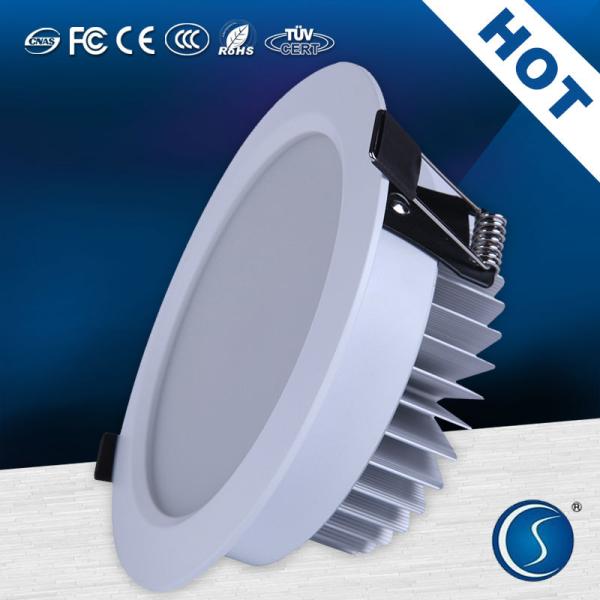

150mm led down light hot sales quality LED Down light

  • Light Source:LED
  • Item Type:Downlights
  • LED Light Source:LED
  • Warranty(Years):3
  • Input Voltage(V):AC 100~240V
  • Lamp Power(W):15
  • Lamp Luminous Flux(lm):1200±150LM
  • Lamp Luminous Efficiency(lm/w):90
  • CRI (Ra>):80
  • Color Temperature(CCT):Pure White
  • Working Temperature(℃):-10 - 40
  • Working Lifetime(Hour):50000
  • Lamp Body Material:Aluminum Alloy
  • IP Rating:IP20
  • Certification:CE, RoHS
  • Model Number:SC-DLE015W01
  • Place of Origin:Guangdong, China (Mainland)
  • Brand Name:Sourcechip
  • Model Name:led slim down light
  • led slim down light:high power 5 inch 150mm cutout 15 watt round led slim down light
  • wattage:15W

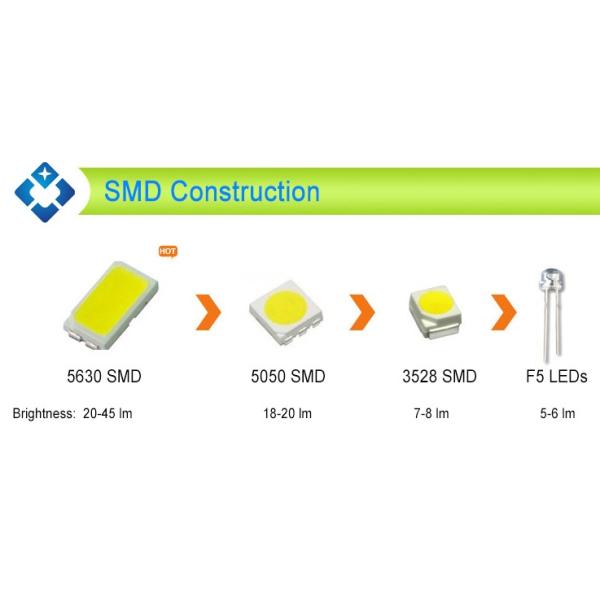

  • Light source:5630SMD
  • Lumen:1200±150LM
  • Cutout:150mm
  • Lamp body:aluminium alloy
  • CRI:≥80
  • Beam Angle:90°
  • Size::160*60mm

xinxinlong001

Dongguan Sourcechip Opto-electrical Tech Co.,Ltd.
Sourcechip 150mm led down light Tel: +86-769-81608082
Sourcechip 150mm led down light Fax: +86-769-81608083
Sourcechip 150mm led down light Contact E-mail:
Sourcechip 150mm led down light website 1:
Sourcechip 150mm led down light website 2:
Sourcechip 150mm led down light Address: No.2 Min Yi Road, Wusha Community, Chang'an Town, Dongguan, Guangdong, China

1. LED DownLight Product Specification:

LEDModel No.

SC-DLE015W01-30

SC-DLE015W01-40

SC-DLE015W01-60

Rated power

13W

Consume power

15±1.5W

Input Voltage

AC 100-240V

Output Voltage

42-52V

Input current

280mA±5%

Efficiency

≥85%

Cutout

150mm

P.F

≥0.80

Light Source CRI

Warm white

Natural white

Pure white

3000±200k

4000±300k

6000±300k

Light Source Luminous flux(lm)

≥50LM

≥55LM

≥60LM

Lighting CCT

3000±300k

4000±300k

6000±500k

Lighting LM

1100±150LM

1150±150LM

1200±150LM

Lighting View Angle

110°

Lighting CRI

≥70/≥80

Key point temperature
(during aging test)

LED Welding foot

Lamp shell

≤75°C

≤70°C

Working Temp.

-10°C~40°C / R.H.≤85%

Storage Temp.

-30~65°C

Life span

50,000 HR

IP Rate

IP20

2.LED DownLight Product Features:

²Ultra bright!flicker-free!Energy saving!

²Professional commercial lighting, it's your best choice for shops, stores, super markets etc.

²Innovative design for elegant appearance aluminum housing;

²High lumen super bright SMD as light source;

²Soft light, long lifespan;

3.LED DownLight Detail Show:

150mm led down light hot sales quality LED Down light150mm led down light hot sales quality LED Down light150mm led down light hot sales quality LED Down light150mm led down light hot sales quality LED Down light150mm led down light hot sales quality LED Down light

4.LED DownLight Application:

Offices, shopping mall, supermarket, schools, hospitals, hotels, parking lot, factories, municipal engineering, houses etc.

150mm led down light hot sales quality LED Down light150mm led down light hot sales quality LED Down light

5.LED DownLight Trade Terms:

Payment terms

T/T, Western union, PayPal ,L/C,Escrow

Minimum order quantity

1pcs

sample lead time

3-7days

production lead time

7-15days

packing standard

single box depart

shipping port

Shenzhen

shipment

by express(DHL/UPS/FEDEX) air or sea

(1).Payment terms:

We accept PayPal, T/T, L/C, Western union, Escrow etc .If need further detail, Please feel free to contact us, Thanks!

150mm led down light hot sales quality LED Down light

(2).Shipment terms:

150mm led down light hot sales quality LED Down light150mm led down light hot sales quality LED Down light

6.Packing,Transportation & Storage Requirement

6.1, Packing Material

Name

Description

QTY

PE bag

260*230mm

1pcs

N.W

20±5g

White box

L175*W175*H70mm

1pcs

N.W

680±30g/1PCS

Big carton case

L365*W365*H370mm

1/20pcs

G.W

14.65±0.5kg/carton

6.2, Pasted Master Carton label on each main mark and side mark, pasted product label on Lights;

6.3,Seal packing box tight before transport, handle gently, mark product name, quantity etc on carton box;

6.4,Storage requirement: moistureproof,dustproof, avoid press, avoid tumble, avoid acid and base, avoid direct sunshine and expose;

6.5,storage expires: One year. exceed the expire time must Re-inspect electricity function before use.

7.More Led Downlight:

150mm led down light hot sales quality LED Down light150mm led down light hot sales quality LED Down light

8.Our service:

1.You inquiry related to our products or prices will be replied within 24 hours.
2.Well-trained and experienced staffs to answer all your inquires.
3.OEM & ODM, any your own design lightings we can help you to design and put into product.
4.Protection of you sales area ,ideas of design and all your private information
.

9.About our company:

150mm led down light hot sales quality LED Down light

10.Certification:

150mm led down light hot sales quality LED Down light
