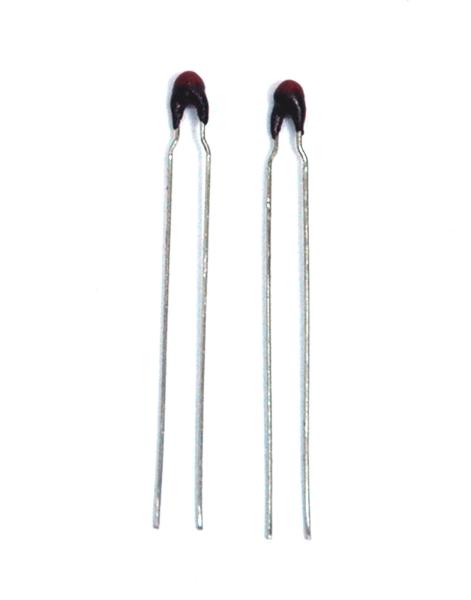

NTC Thermister Temperature Sensor 10kohm
NTC Thermister Temperature Sensor 10kohm
Specifications
Place of Origin :
CHINA
Brand Name :
JK
Certification :
ROHS,ISO 9001,UL
Model Number :
MF11
Description

Quick details

• Wide choice of B values
• Standard tolerances: ±5%, ±10%, ±20%
• B Value tolerance: ±5%
• Available in all standard R values
• Measuring power ≤0.5mW
• Dissipation Constant ≥6.0mW/°C
• Time Constant of ≤30 seconds
• Rated Power: 0.5W
• Good level of Tolerance and Interchangeability
• Temperature Range: -55°C to 125°C

Description

The MF11 series of NTC Thermistors is designed for temperature measurement and the temperature compensation of measurement instruments and electronic circuits.

Application

• Temperature Measurement
• Temperature Compensation of Electronic Circuits

Specification

NTC Thermister Temperature Sensor 10kohm Dimensions

NTC Thermister Temperature Sensor 10kohm

NTC Thermister Temperature Sensor 10kohm
Part No
B Value (25/50ƒC)
Rated zero-power resistance at 25ƒC
Rated Value (K)
Allowable Tolerance (%)
Resistance range(Ω)
Allowable Tolerance (%)
MF11 2700
2830
2950
3100
3250
3400
3570
3740
3900
4050		 +/-5 3.3-33
6.8-68
15-150
33-330
68-680
150-1500
330-3300
680-6800
1500-15000
3300-33000		 +/- 5
+/- 10
+/- 20
Remark: We can produce thermistors according to your special requirements.

NTC Thermister Temperature Sensor 10kohm Power-Consumption Curve:

NTC Thermister Temperature Sensor 10kohm

NTC Thermister Temperature Sensor 10kohm Specification

NTC Thermister Temperature Sensor 10kohm
