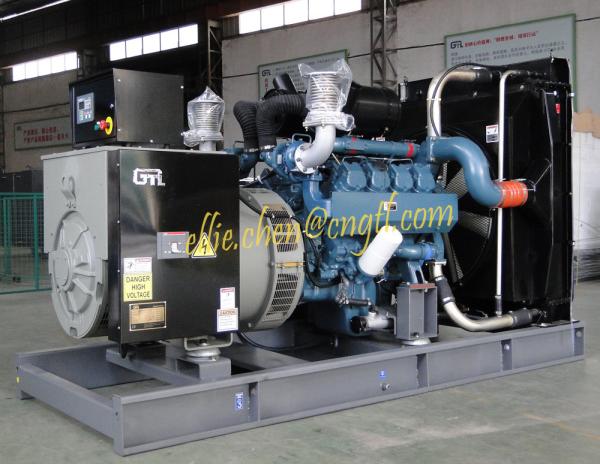

400kva Doosan electrical generator

* BRAND-NEW and ORIGINAL low fuel consumption diesel engine, efficient alternator and digital controller

* Standard Circuit breaker for overload and short circuit protection

* Standard shock pads for whole generating set (engine, alternator and control box)

* Standard generator accessaries: Maintenance-free Battery(Brand: YUASA/Japan), Advanced Battery Switch with Cables and rack, exhaust silencer, flexible pipe, flange, standard tools kit, and engine/alternator/generator set operation & maintenance manuals.

* Each generator set is with 8 working hours build-in fule tank for convenient daily use.

* Optional accessaries: Canopy generator, ATS, Parallel operation and Synchronization system, mobile trailer generator

* Generator warranty: World warranty service

General Data

Prime power (kva/kw): 400/320

Standby power(kva/kw): 440/352

Voltage/Frquency/Phase: 220/380V, 230/400V, 240/415V, 254/440V, 277/480V

Engine Data

Brand: Doosan

Model: P158LE-1

Number of Cylinders: 8

Bore x Stroke: 128x142

Rated RPM: 1500

Base output power (KW): 349

Displacement (L): 14.618

Compression ratio: 15:1

Air intake way: Turbo charged & intercooled(air to air)

Governor method: Electronic

Diesel generator low fuel consumption (L/h)

Standby power: 102.9

100% prime power: 89.3

75% prime power: 65.1

50% prime power: 43.9

Alternator Data

Brand: Stamford, Leroy Somer, Marathon or MeccAlte

Voltage: 400V

Frequency: 50Hz

Number of phase: 3

Power factor(COS phi):

Voltage regulation: AVR

Altitude (m): 1000

Ambient temperature (℃):

Insulation class: H

Bearing: Single

Coupling: Direct

Generator Controller:

Deepsea, Woodward, DEIF,ComAp, Smartgen

Genset dimension

Open-skid generator (mm): 2850*1510*1950

Weight (kg): 2900

Soundproof generator (mm): 4500*1880*2400

Weight (kg): 3800
