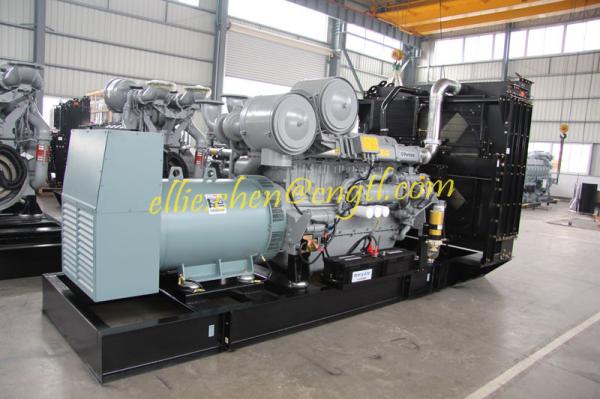

938kva Perkins generadores de energía de reserva para casos de emergencia backup generator
938kva Perkins generadores de energía de reserva para casos de emergencia backup generator
938kva Perkins generadores de energía de reserva para casos de emergencia backup generator
938kva Perkins generadores de energía de reserva para casos de emergencia backup generator
938kva Perkins generadores de energía de reserva para casos de emergencia backup generator
938kva Perkins generadores de energía de reserva para casos de emergencia backup generator
Specifications
Place of Origin :
China
Brand Name :
GTL
Certification :
CE, ISO9001, ISO14001
Model Number :
PW-938T5
Controller :
Deepsea, Woodward, DEIF,ComAp, Smartgen
Speed :
1500rpm
Output Type :
AC Three Phase
Description

928kva generadores de energía de reserva para casos de emergencia, backup power generators

MODEL PW-938T5
Stand-by power@50Hz 1032kva/825kw
Prime power@50Hz 938kva/750kw

Engine Data
Manufacture 　 PERKINS(UK)
Model 　 4008TAG1A
Number of Cylinders 　 8
Borexstroke mm 160X190
Rated RPM Rpm 1500
Gross engine power KW 882
Cubic capacity L 30.561
Compression ratio 　 13.6:1
Air intake way 　 Turbocharged, air to air charge cooled
Engine Electrical System
Alternator output 　 28v/40 amps
Starter motor power 　 8.2kw
Exhaust System
Exhaust outlet size(internal) mm 2*152.4
Max. exhaust back pressure for total system mmH2O 683
Fuel consumption
Standby power L/h 218
At Prime power rating L/h 195
75% prime power L/h 143
50% prime power L/h 98
Lubrication oil capacity
Total system L 153
Min. L 127
Cooling System
Total system capacity(with radiator) L 162
Thermostat operating range ℃ 71_85
Max. top tank temperature ℃ N/A

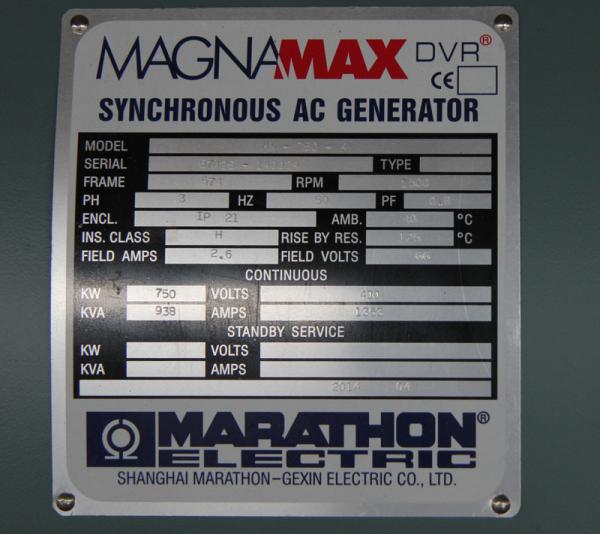

Alternator Data
Manufacture 　 Marathon
Model 　 MX-750-4
Output power KVA 938
Voltage regulation 　 Brushless with AVR
Number of phase 　 3
Power factor (cos phi) 　 0.8
Altitude m <1000
Ambient min-1 2250
Insulation:calsss 　 H
Bearing 　 Single
Coupling 　 Direct

The overall performance and reliability characteristics makes this one of the prime choices for today’s power generation industry.

* Economic generator: Individual 4 valve per cylinder give optimised gas flows, while unit fuel injectors ensure ultra fine fuel atomisation and hence controlled rapid combustion for efficiency and economy

* Reliable power generator set: All engines are tolerant of a wide range of temperatures without derate

* Efficient electric equipment: Designed to provide excellent service access for ease of maintenance

* Clean power generating set: Low gaseous emissions for cleaner operation

938kva Perkins generadores de energía de reserva para casos de emergencia backup generator
