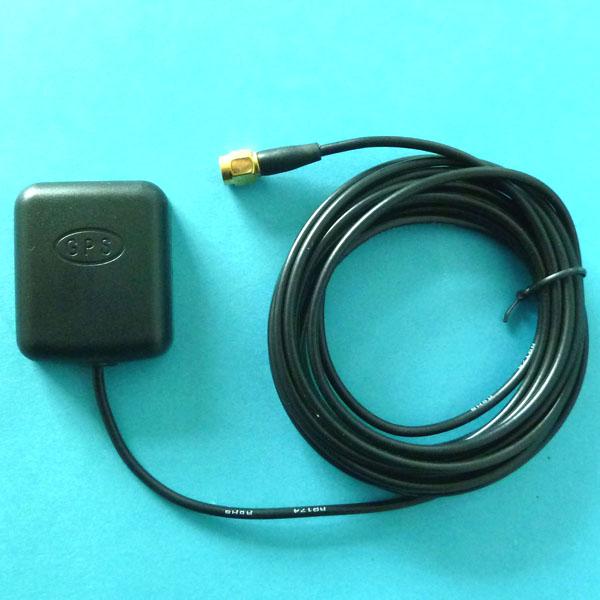

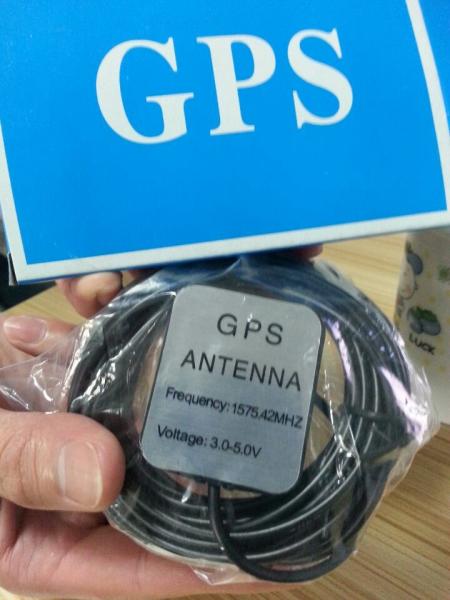

High gain GPS Vehicle Navigation tracker antenna
High gain GPS Vehicle Navigation tracker antenna
High gain GPS Vehicle Navigation tracker antenna
High gain GPS Vehicle Navigation tracker antenna
Specifications
Place of Origin :
China(mainland)-Guangdong
Brand Name :
AMEISON
Model Number :
AMXGPS-1575.42-28A
Certification :
RoHS and REACH Compliant by Exemption
Frequency rang(MHz) :
1575.42±5
Gain(dBi) :
5±0.5
LNA(dBi) :
28
Connector type :
SMA Male
Polarization :
RHCP
Description

High gain GPS Vehicle Navigation tracker antenna

AMXGPS-1575.42-28A

GPS Antenna

Features:

Good Sensibility

Accessible to various satellites

Strong singal,accurate positioning.

Ferromagnetic, strong anti-waterproofing ability

Applications:

Vehicle Navigation

Security and tracking system

Global Satellite Positioning System

AMXGPS-1575.42-28A

Electric Specification

Frequency rang(MHz)

1575.42±5

Bandwidth(MHz)

10

Gain(dBi)

5±0.5

LNA(dBi)

28

VSWR

≤1.5

Input Impedance(Ω)

50

Polarization

RHCP

Voltage(V)

3 /5

Rated Electric Current(mA)

≤20

Connector type

SMA Male

Mechanical Specification

Size(mm)

46*38*13

Cable length(m)

3.0

Working Temperature(°C)

-30~60

Radome color

Black

quality,reasonable and competitive price ,fast lead time!

Company Information

Ameison Antennas have been working in worldwide for over 6 tears. Our antennas cover GSM, CDMA, 3G, 4G, LTE, Wifi, Wimax, Wlan, UHF TV, VHF TV, RFID, Cluster, Marine and so on. Now we have a lots of MIMO and DAS models are hot selling.

High gain GPS Vehicle Navigation tracker antennaHigh gain GPS Vehicle Navigation tracker antenna

Our Services

provide you:

high quality products

better product pre-sales and after-sales service

attractive prices

shorter delivery
