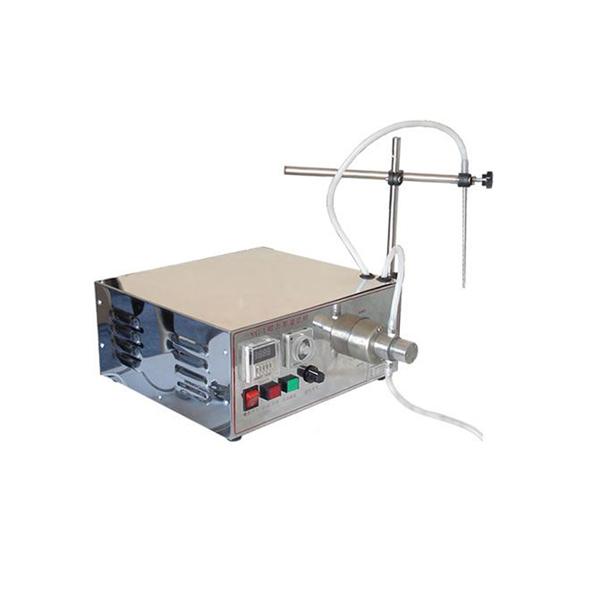

semi-automatic Magnetic pump liquid filling machine YG-1
semi-automatic Magnetic pump liquid filling machine YG-1
Specifications
Place of Origin :
Shandong China
Brand Name :
china coal
Description

Chinacoal08

Product Introduction

Principle and characteristics

1, world brand frequency converter, equipped with imported high-precision multi-turn potentiometer and lockable dial, so that stable and accurate flow regulation, the error is negative small at 0.5%, is small at 1.5%.

Imported 316 stainless steel magnetic gear pump, reliable quality and long life;

3, stainless steel chassis, durable;

4, small, easy to operate;

5, the the cleaning Qingdu convenient;

6, full-featured, automatic and manual can be. With work on the assembly line;

7, can be equipped with multiple filling heads, commonly used models have a single head machine, double and four machine;

8,. I have filling capacity from 1ml to 10000ml adjustable, easy to adjust.

Main Parameter

Machine type

YG-1

YG-2

YG-4

Rated voltage

220V / 110V

220V / 110V

220V / 110V

Maximum power

40W

(40X2)W

(40X4)W

Host weight

14kg

18KG

28KG

Error

± 1.5%

± 1.5%

± 1.5%

Maximum flow / single pump

> 1.44 / min

> 1.44 / min

> 1.44 / min

Host size

410 × 330 × 270 (mm)

510×330×270(mm)

720×330×270(mm)

Package Size

600 × 470 × 365 (mm)

600×470×365(mm)

810×470×365(mm)
