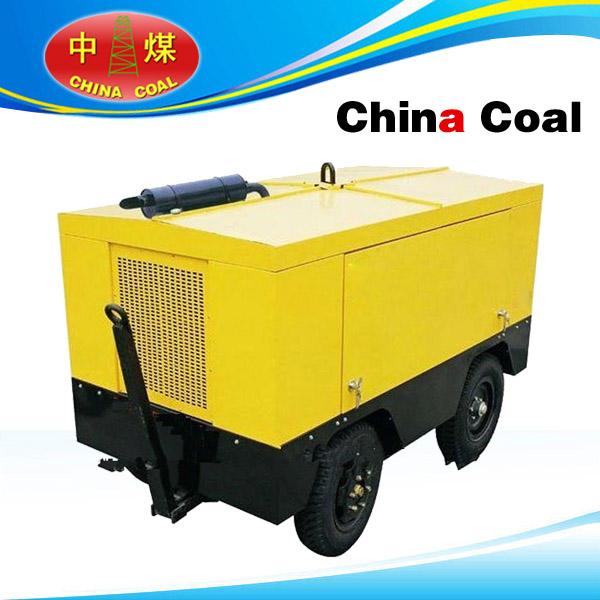

CVFY-12/7 piston air compressor with diesel engine
CVFY-12/7 piston air compressor with diesel engine
Specifications
Place of Origin :
China
Brand Name :
china coal
Certification :
MA, ISO9001
Description

Product Introduction

1. Discharge capacity: 5.5m3/min---25m3/min

2. Power: 46kw, 65kw, 70kw, 110kw, 132kw, 150kw.....

3 Discharge presure: 0.7, 1.0, 1.2, 1.3, 1.7Mpa

4. wheel available: 2 wheels and 4 wheels

5. brand sell and hot sale for all of the world

Main Parameter

CVFY-12/7 technical parameters

level 1 cylinder

number

2

diameter

265

Level 2 cylinder

number

2

diameter

160

capacity

m3/min

12

cfm

424

pressure

Mpa

0.7

psig

102

motor

diesel engine

6BT5.9-C118-10(118KW,160HP)

net weight

KG

2700

dimension

L*W*H(mm)

3850*1700*2300
