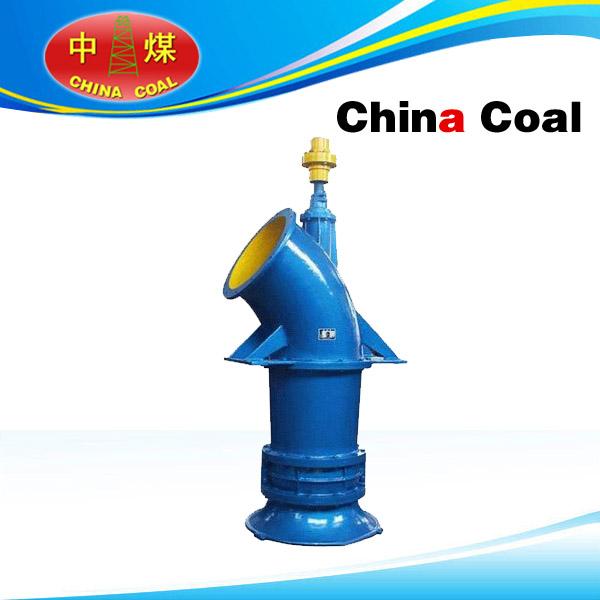

ZLB axial flow pump
ZLB axial flow pump
Specifications
Place of Origin :
China
Brand Name :
china coal
Model Number :
ZLB
Certification :
MA, ISO9001
Description

Product Introduction

ZIB pumps are single stage vertical pump, the liquid flows along the shaft axis. For pumping water, sewage (or waste water), and minor corrosive liquids, transmission fluid temperature is generally no higher than 50 °C. This pump is a large flow and low lift pumps, for agricultural irrigation, salt factories, farming, water supply, drainage, sewage treatment, power transmission cycle of water, water or other hydraulic lift dock purposes, can be used for metallurgy, chemical industry (special requirements can be designed), the use of a wide range.

Main Parameter

Model

Flow

Head H(m)

rotate speed n(r/min)

frequencyη(%)

Power(kW)

impeller diameter (mm)

diameter (mm)

(m3/h)

(L/S)

axis power

motor power

inlet

outlet

500ZLB-85

2512

698

5.24

980

85

42.17

55

450

.

500

500ZLB-4

2365

657

3.95

980

83.4

30.6

45

430

.

500

500ZLB-160

2491.2

692

2.75

980

81.5

22.9

30

450

.

500

28ZLB-7028ZLQ-70

4500

1250

6.67

730

82.6

99

130

630

.

700

700ZLB-100700ZLQ-100

5148

1430

5.8

730

85

95.7

130

630

.

700

.

4428

1230

3.02

585

84

43

80

630

.

700

700ZLB-125

4896

1360

3.6

730

83.8

57.3

80

600

.

700

.

3852

1070

2.42

585

83.8

30.3

45

600

.

700

700ZLB-160

5220

1450

2.78

730

82.6

47.8

60

630
