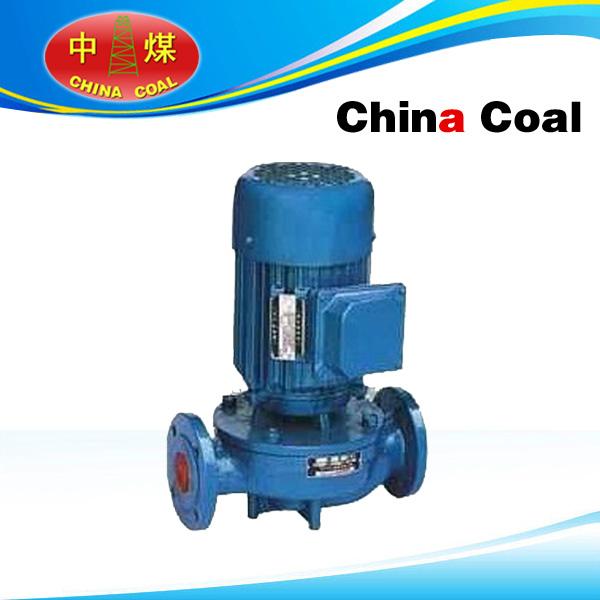

SGPB piping pump
SGPB piping pump
Specifications
Place of Origin :
China
Brand Name :
china coal
Model Number :
SGPB Series
Certification :
MA, ISO9001
Description

Product Introduction

SGPB piping pump is a new vertical single stage pump that be used to transport water to high building. It adopts new mechanical seal, the impeller is installed on the shaft directly, this is helpful to high efficiency and save electricity. Besides, it’s light weight, small volume, convenient structure, and it can be used in series or parallel according to head and flow.

SG piping pump is used to transport water to high building, garden irrigation and water circulation. Temperature of water should not more than 80°C.

SGP hot water piping pump is used to cycle hot water, temperature of water should not more than 140°C.

SGP anticorrosive pump is a kind of stainless pump that is used to transport corrosive liquid. Temperature os medium should not more than 100 °C.

SGB explosion proof pump is used to transport flammable and explosive liquid. Temperature of medium should not more than 80°C.

SGPB anticorrosive & explosion proof pump is used to transport corrosive and explosive liquid. Temperature of medium should not more than 140°C.

Working condition of SG piping pump

1. Inlet pressure should not more than 3kg/cm2.

2. The medium should be clear water.

3. Environment temperature between±45°C.

4. The voltage is 380v, part for 220v.

Model significance

Take"40 SGPB 15-50" for an example

40--input diameter

SGPB--decay resistance explosion-proof pipe;ine pump

15--flow

50--lift

Main Parameter

SGPB piping pump
