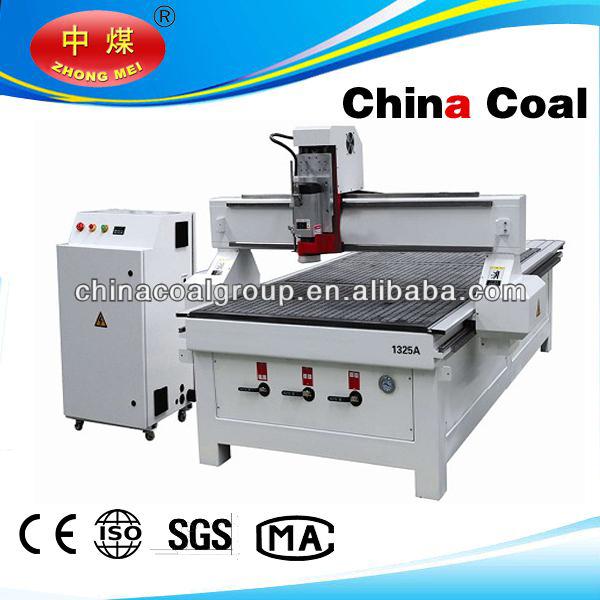

ZM-1325B Wood CNC Router
ZM-1325B Wood CNC Router
Specifications
Place of Origin :
China
Brand Name :
china coal
Model Number :
CG2-11
Certification :
MA, ISO9001, CE
Description

Features

1. Gantry movement,more stability

2. Water cooling spindle , low noise , perfect function,long life time

3. Thicken square pipe structure , well welded,not distortion

4. Software:support CAD/CAM

5. Keep 9 breakpoint

Option :

Machine size

Italy HSD spindle

Servo motor

Multi spindle

Movable table and rotary

Technical Parameter

Model

ZM-1325B

Working area

1300x2500x200 mm

Machine size

1600x3100 mm

Precision

0.05 mm

Max speed

30 m/min

Working speed

25 m/min

Spindle

3 KW , water cooling ,0-24000 rpm

Software

Ucancan V8 / Artengraver /TYPE 3

Controller

DSP / NC Studio

Command

G Code * U00 * mng * plt

Surrounds

Windows 98/2000/xp

Power

AC 220V/ 50Hz

Motor

AC 220V/ 50Hz

Structure

Cast steel structure

X Y axis

Taiwan wheel gear

Z axis

Imported ball screw

Dust collector

3 KW two bag dus

Oiling system

Auto oiling system

Option

Vacuum pump
