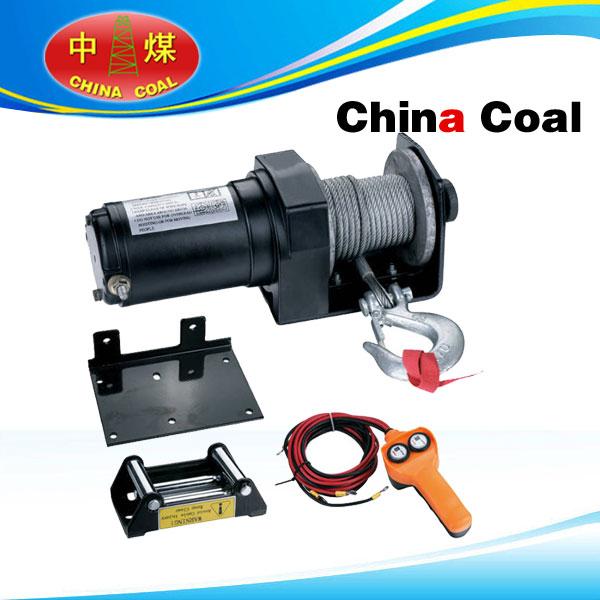

4X4 Electric Winch 5000lbs
4X4 Electric Winch 5000lbs
Specifications
Place of Origin :
China
Brand Name :
china coal
Certification :
MA, ISO9001
Description

Product Introduction

1. Three stage planetary gear system provides fast line speed

2. 12 volt permanent magnet motors draws less current

3. Automative load-holding break for safety

4. The clutch allows you to release winch rope by hand

5. Aircraft grade wire rope,or synthetic rope is optional

6. Remote switch with9.8ftlead, or wireless remote control at your request

7. Our products are of well-designed,beautiful appearance and easy to install

Feature :

1. High-quality gearbox
2. Frictionless freespooling clutch
3. Automatic braking
4. Premium wire cable
5. Roller fairlead
6. Better components and controllers
7. Excellent fit and finish
8. Remote control
9. Easy to install

Main Parameter

Rated Line Pull

5000LBS (2268kgs) single line

Motor

1.9kw/2.6hp, permanent magnet

Control

Remote switch,11.5ft(3.5m)lead

Gear train

3 Stage Planetary

Gear train ratio

235:1

Clutch

Sliding Ring Gear

Braking Action

Automatic In-The-Drum

Drum Size

Φ2.5"(64)mm×(5.3)133.5mm

Cable

Φ6.4mmX20m

Overall Dimensions

16.3"x6.3"x8.5"(415mm×160mm×217mm)

Mounting Bolt Pattern

165mm×114mm Φ11

Weight

N.W.31kg G.W.33Kg

Packing Size

610×350×270mm
