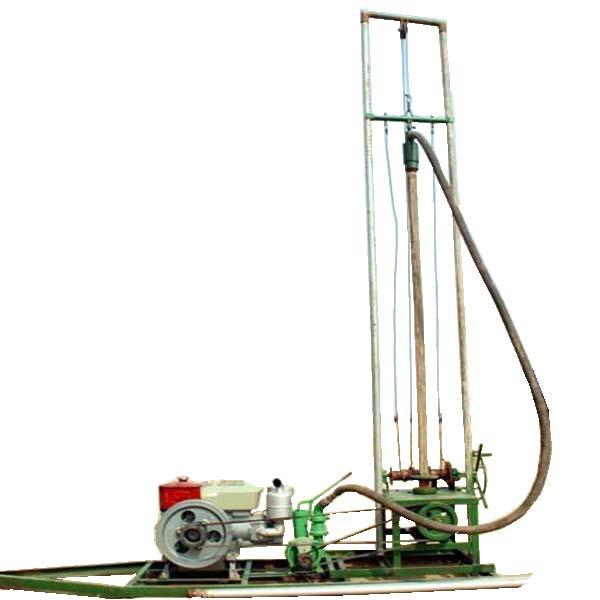

small diesel/electrical water well drilling rig
small diesel/electrical water well drilling rig
Specifications
Place of Origin :
China
Brand Name :
china coal
Certification :
MA, ISO9001, CE
Description

  1. Introduction:

    ZT-300 is a small water well drilling machine is widely used for farm irrigation, easy to operate, high efficiency,

    most economical and practical.

    1. This small water well drilling is widely used for drink water well drilling.

    2. The quality and the performance is safe and reliable.

    3. The drilling depth is 60-80 m; the drilling diameter is 100-300mm.

    4. The weight and dimension of this machine is small, convenient and easy to operate, labor-saving, high efficiency

    and long service life.

    Tips

    This drill rig cannot drill stones,

    The technical parameter

    Model

    ZT-300

    Drilling depth

    60-80m

    Drilling diameter

    100-300mm

    Power

    15hp diesel engine(water cooled)

    Centrifugal mud pump

    Suction head:10m

    Lift Range:45m

    Power: 4.4kw/2600rpm

    Flow capacity:50m3/h

    Rotary speed

    200rpm

    Rotary table diameter

    80mm

    Rotary table torque

    100KN.M

    Packed Dimension

    2300*900*950mm

    Weight (complete machine)

    800kg

    Basic configuration

    Main machine with diesel engine, 31meters drill rod, 2pcs of 100mm drill bits, one mud pump
