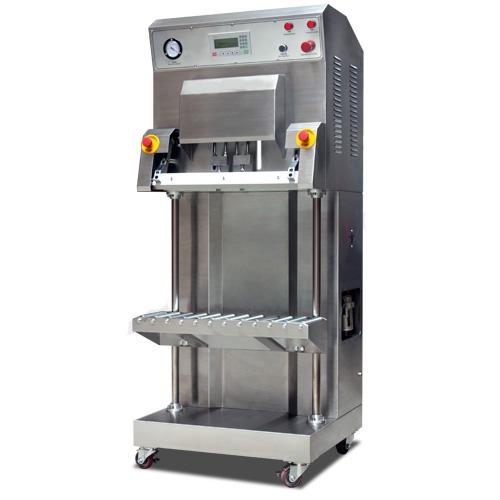

DZQ-700L/S External food vacuum sealing machine
DZQ-700L/S External food vacuum sealing machine
Specifications
Place of Origin :
China
Brand Name :
china coal
Certification :
MA, ISO9001, CE
Description

Machine Introduction

External multifunction modified atmosphere vacuum packaging machine is a basic external vacuum packaging machine,plus could be fixed gas flush system for inert gas filling or mixed gas filling in the packaging according to customers'actual requirements. We will supply powder filter according to power's mesh number if the packing item is powder at customers' option. Generally heat sealing comes with single sealer,double sealers heat sealing can be chose according to customers' bags different thickness at customers' option.

Features:

1.Control system: OMRON programmable PLC, text display.

2.Pneumatic system::Taiwan AirTAK pneumatic component

3.External vacuum suction structure: Two cylinders, two suction nozzles.

4.Lift-down conveyor, easy in operation.

5. Heavy moving wheel (with brake): The heavy moving wheel with high bearing capability, which makes customer moving easily

Technical Data:

Model

DZQ-700L/S (stainless steel)

Machine Dimension(mm)

730×830×1800

Sealer Form

Double Heat

Sealer Dimension(mm)

700×10×2

Sealer Power Consumption(kw)

1

Pump Capacity(m3/h)

20

Pump Power Consumption(kw)

1.1

Voltage(v)

110/220/240

Hertz(Hz)

50/60

Production Cycle(times/min)

2-3

Sealer Adjustment Range(mm)

1300-475

Conveyor Width (mm)

230

Conveyor Length (mm)

720

Conveyor Loading(kg)

50

N.W.(kg)

160

G.W.(kg)

230

Shipping Dimension(mm)

1900×920×1120
