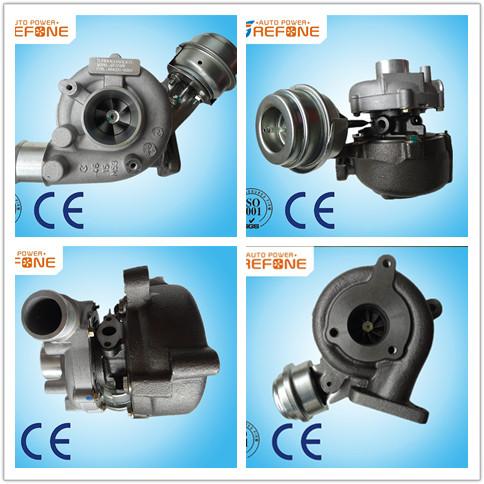

Gt1749V 454231-0004 454231-0001 Garrett Turbo for Audi A4
Gt1749V 454231-0004 454231-0001 Garrett Turbo for Audi A4
Specifications
Place of Origin :
China
Brand Name :
Refone
Model Number :
GT1749V
Certification :
CE,GS
Description

GT1749V 454231-0004 garrett turbo for Audi A4 (454231-0001/2/3/4/ 5005S/5007S/0010)

Part Number454231-5007S
Previous Version454231-0001, 454231-0003, 454231-0004, 454231-0007, 454231-5005S, 454231-5012S, 454231-9012S, 454231-0007, 454231-7
OE number028145702H, 028145702HV225, 028145702HV500, 028145702HX, 028145702HV
Year1997-04
DescriptionAudi A4/A6 Volkswagen Passat
CHRA433395-0019 (433395-5019S)
Turbo ModelGT1749V (S1), GT1749V(S2)
EngineAVB, AHH/AFN, TDI 110 PD, TDI 115 PD, PD UI
Engine ManufacturerVW
Displacement1.9L, 1900 ccm
KW110/115
RPM Max4250
FuelDiesel
Angle α (compressor housing)90
Angle β (turbine housing)230
Bearing Housing434533-0002/433145-0004
Turbine Wheel434533-0002
Comp. Wheel434812-0001
Back plate434813-0001/700593-0006
Heat Shield433112-0001
Repair Kit Minor732136-0001
Repair Kit Major732248-003/732245-0001
Thrust Kit732248-0003
Nozzle Ring Assembly434596-0001
Turbine Housing701227-0001
Compressor Cover434808-0002
Turbine Housing ARVNT1
Actuator434855-0012
Replaced By454231-0010


Our advantages:
1. Brazil Hot Selling
2. Sample order is acceptable
3. 1 Year Quality Warranty
Applications
1997-04 Audi A4 TDI with TDI 110 PD, TDI 115 PD, PD UI Engine
1997-04 Audi A6 TD with TDI 110 PD, TDI 115 PD, PD UI Engine
1997-04 Skoda Superb TDI with TDI 110 PD, TDI 115 PD, PD UI Engine
1997-04 Volkswagen Passat TDI with TDI 110 PD, TDI 115 PD, PD UI Engine
1997-99 Audi A4 1.9L TDI (B5) Engine AHH / AFN
2000-04 Audi A4 1.9L TDI (B6) Engine AVB, BKE
1997-01 Audi A6 1.9L TDI (C5) Engine AHH / AFN
1997-00 Volkswagen Passat B5 1.9L TDI Engine AHH / AFN
