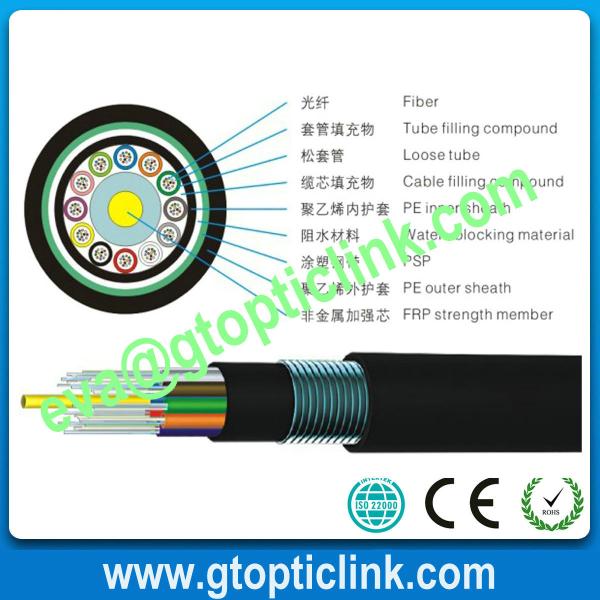

48 Core Direct Buried Fiber Cable GYFTY53
48 Core Direct Buried Fiber Cable GYFTY53
Specifications
Place of Origin :
Shenzhen,China
Brand Name :
GT-Link
Certification :
ISO,CE,RoHS,GGS
Model Number :
GT-GYFTY53
Installation :
Direct-buried Cable
Sheath Material :
PE,LSZH,PVC,TPU
Fiber Number :
12~288
Package :
2KM/3KM
Operating temperature :
-40~+60°C
OEM :
Available
Loose Tube Material :
PBT
Fiber Type :
single mode or multi mode
Water-blocking Material :
YES
Cable Filling Compound :
YES
Messenger :
FRP
Model :
Double Jackets
Armored :
Steel Tape
Description

Description:48 Core Direct Buried Fiber Cable GYFTY53

Technical Specification

Cable Type
(increased by 2 fibers)

Fiber Count

Tube+Fillers

Max. No. of fibers
in tube

Cable Diameter
(mm)

Cable weight(Kg/Km)

Tensile Strenth Long/Short(N)

Crush Resistance Long/Short Term(N/100mm)

GYSTY--4~30 Cores

4~30

5

6

9.6~

80~

600/1500

300/1000

GYSTY--4~36Cores

4~36

6

6

10.2~

90~

600/1500

300/1000

GYSTY--32~60Cores

32~60

5

12

10.6~

95~

600/1500

300/1000

GYSTY--32~72Cores

32~72

6

12

11~

100~

600/1500

300/1000

GYSTY--74~96Cores

74~96

8

12

12.5~

120~

600/1500

300/1000

GYSTY--98~120Cores

98~120

10

12

13.8~

160~

600/1500

300/1000

GYSTY--122~144Cores

122~144

12

12

15.4~

210~

600/1500

300/1000

GYSTY--146~216Cores

146~216

6/12

6/12

16~

220~

600/1500

300/1000

II. Configuration

No. of Fibers

2-36

38-72

74-96

98-120

122-144

Design

6*6

6*12

8*12

10*12

12*12

Loose Tube / Filler - Ø

mm

1.9

2.3

2.3

2.3

2.3

CSM Ø

mm

2.0

2.4

4.0

5.5

7.1

Outer Sheath Thickness

mm

2.0

2.0

2.0

2.0

2.0

Cable Diameter

mm

14.1

15.1

16.3

17.8

19.4

Cable Weight

Kg/km

193

212

246

288

336

IV.Main Mechanical and Environmental Test

Max. Installation Tension; Max. Operation Tension; Crush; Impact; Torision; Repeated Bending; Cable Bend; Temperature Cycling; Water Penetration

V. Identification and Packing

a. Fiber Colors & Buffer Tube Colors (acc. to TIA/EIA-598-A standards)

Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Rose, Aqua.

b. Sheath Marking: the outer sheath is marked in 1 meter intervals as follows:

DRAKA COMTEQ <year of manufacture> <number and type of fiber> <length marking in meter>

c. Packing: Wooden drums with protection.

d. Delivery Lengths: Standard delivery lengths are 2 km, 4 km, 6 km with a tolerance of - 1% / + 3%
