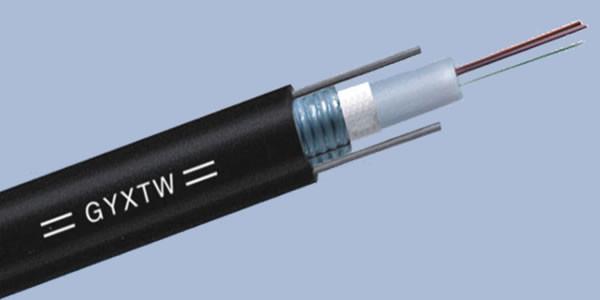

GYXTW G652D Fiber Outdoor Optical Fiber Cable
GYXTW G652D Fiber Outdoor Optical Fiber Cable
GYXTW G652D Fiber Outdoor Optical Fiber Cable
GYXTW G652D Fiber Outdoor Optical Fiber Cable
Specifications
Place of Origin :
Shenzhen,China
Brand Name :
GT-Link
Certification :
ISO,SGS,CE,RoHS
Model Number :
GT-OFC
Application :
Duct,Aerial
Model Type :
GYXTW
Sheath Material :
PE,PVC,LSZH
Strength Member :
Corrugated Steel Tape
Fiber Type :
9/125,50/125,62.5/125um
Fiber Number :
1~12
Package :
Wood Drum
OEM :
Available
Description

Brief Introduction:

1.GYXTW G652D Fiber Outdoor Optical Fiber Cable
2.Loose tube stranded,Non-mentalic strengh member
3.Double jacket,excellent

Description: GYXTW G652D Fiber Outdoor Optical Fiber Cable

Application:

  • Usable for ducts, direct burial, aerial installation
  • Long-haul communication system
  • Subscriber network systems
  • Local area network systems

Properties:

  • Waterproof layer providing strong water-resistance Performance
  • Steel tape with PE outer sheath and metallic strengthen member enhancing anti-crush and tensile property of cable

Structure Characters

  • Two parallel steel wires ensure tensile strength
  • PSP enhances the cable crush resistance, impact resistance and moisture-proof.
  • Accurate fiber excess length ensures good mechanical and temperature performance.
  • Specially designed compact structure is good at preventing loose tubes from shrinking.
  • High strength loose tube that is hydrolysis resistant and special tube filling compound ensure a citical protection of fiber.
  • Small diameter, light weight and it is easy to be installed.
  • Crush resistance and flexibility

Technical Specification

l Temperature range : -40+60

Fiber Count

Cable Diameter(mm)

Weight (kg/km)

Min.Bending Radius(mm)

Max Tension(N)

Crush Pressure(N/100mm)

Dynamic

Static

Short Term

Long Term

Short Term

Long Term

2-6

8.0

70

20×D

10×D

1500

600

1000

300

8-12

GYXTW G652D Fiber Outdoor Optical Fiber Cable
