H.264 Mega Pixel Pan Tilt Wireless IP Camera Support 720P (1280*720) Video Code
H.264 Mega Pixel Pan Tilt Wireless IP Camera Support 720P (1280*720) Video Code
H.264 Mega Pixel Pan Tilt Wireless IP Camera Support 720P (1280*720) Video Code
H.264 Mega Pixel Pan Tilt Wireless IP Camera Support 720P (1280*720) Video Code
H.264 Mega Pixel Pan Tilt Wireless IP Camera Support 720P (1280*720) Video Code
H.264 Mega Pixel Pan Tilt Wireless IP Camera Support 720P (1280*720) Video Code
H.264 Mega Pixel Pan Tilt Wireless IP Camera Support 720P (1280*720) Video Code
H.264 Mega Pixel Pan Tilt Wireless IP Camera Support 720P (1280*720) Video Code
H.264 Mega Pixel Pan Tilt Wireless IP Camera Support 720P (1280*720) Video Code
H.264 Mega Pixel Pan Tilt Wireless IP Camera Support 720P (1280*720) Video Code
Specifications
Place of Origin :
Shenzhen,China
Brand Name :
ZONEWAY
Certification :
CE
Model Number :
ZW-NC536MW
Resolution :
720p
Compression :
H.264 format
Description

Key Features

Adopt mega pixels CMOS sensor, support 720p (1280*720) video code. User can change some specification according to their demands to satisfy his own visual prefer.
Support 3 kinds of video stream, suitable for Local, Internet and Cross-platform view.
Built-in microphone and speaker, and also support to connect external audio capturing device (like MIC phone or sound pick-up) to capture the audio. External speaker can play the voice sent to the live scene, to achieve twoway intercom function. Audio support G.711 and G.726 types.
Built-in Pan/Tilt, horizontally 350°, vertically 100°. This equipment is smart and beautiful, very easy to install and use in many occasions.
Support IR and color filter change automatically, no any color difference.
Built-in web server, support video view and parameter settings by browser; use one port to send all the data, it facilitates network setting.
Support 802.11b/g/n protocol, can build up wireless monitoring.
Support mobile phone watching.
Support UPNP, port forwarding automatically on the router.
Support maxim 32G SD card for video and picture storage.
Motion detection and alarm pin can be connected to external sensors to detect environmental situation.
Alarming record can be stored by email, SD card, FTP server. External alarm can be open when detecting unusuality. It also sends alarm info to the alarm server.
Support three level of user authority.
Support upgrading online.
Manufacture provide a free DDNS url, when IP Camera is connected to the internet, this URL can be used to visit the device.
Manufacture provides free software, support Multi-view, Long time recording, video replay etc.
Support video view by other browsers like as Firefox, safari etc.

Specifications

Image Sensor
Style PTZ
Sensor CMOS
Sensor Size 1/4 Inch Color CMOS Sensor
Resolution 720P
Lens (mm) 4
Viewing Angle (Degree) 100
Minimum Illumination (Lux) 0
Video Image/Audio Setting
Compression H.264
Video Frame Rate (FPS) 30
Refresh Rate 60HZ, Outdoor, 50HZ
Video Adjustment Contrast Adjustable, Auto White Balance, Brightness Adjustable
OSD Yes
Audio Output External Speaker
Audio Input Built-in Mic
Audio Compression Standard ADPCM
Communication&Interface
Network Interface Wi-Fi/802.11/b/g, RJ-45 10/100Mb self-adaptable Ethernet slot
Supported Protocol FTP, UPNP, HTTP, DHCP, PPPoE, DDNS, SMTP, TCP/IP
Wireless Security WPA, WPA2, WEP
IP Mode Static IP address, Dynamic IP address
Maximum SD Card Support (GB) 32
DDNS (Free) Yes
Alarm Input 1 On/Off Input
Alarm Output 1 Relay Output
Alarm Action Email Photo, Local Alarm, FTP Photo
Physical/Environment
Environment Indoor
Power Supply (V) DC5V
Power Consumption (W) 6
Operate Temperature (℃) (-20~+50)
Humidity (%) RH 10~80
Size (L x H x W, mm) 111x125x110
Weight (g) 374
System Requirment
Supported Mobile Systems Android, Symbian, Windows Mobile, iPhone OS
Supported Operating Systems Microsoft Windows 2000, Microsoft Windows 98, Microsoft Windows 7, Microsoft Windows XP, Microsoft Windows ME, Microsoft Windows Vista
Supported Browers Google Chrome, Safari, Other Standard Browser, Firefox, IE
Client Software Yes
Additional Features
Features Remote Access, Day Night, Motion Detection
IR Night Vision Distance (m) 10
Two-way Radio Yes
User Account Setting (Level) 3
Online User 4
Update Firmware Yes
Pan/Tilt-Horizontal (Degree) 350
Pan/Tilt-Vertical (Degree) 100
Language Simplified Chinese, English
What's in the box

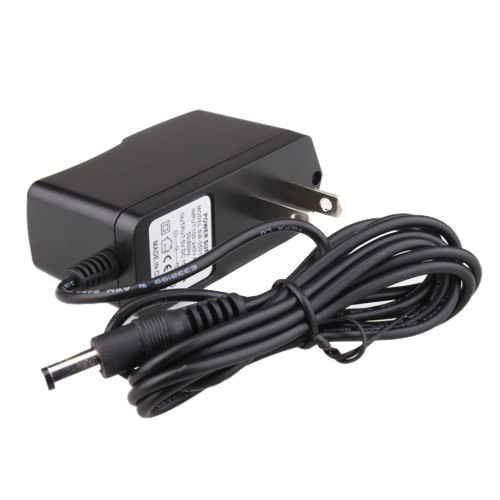

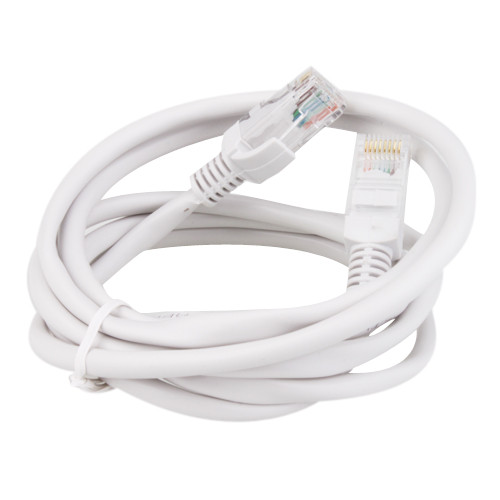

What's in the box IP camera, English User manual, Wi-Fi anntena, Screew, Bracket, CD, Ethernet cable, Power adaptor
