Single Channel Wired video receiver for CCTV Camera
Single Channel Wired video receiver for CCTV Camera
Single Channel Wired video receiver for CCTV Camera
Single Channel Wired video receiver for CCTV Camera
Specifications
Place of Origin :
Shenzhen,China
Brand Name :
ZONEWAY
Certification :
CE
Model Number :
231077
Description

Highlights

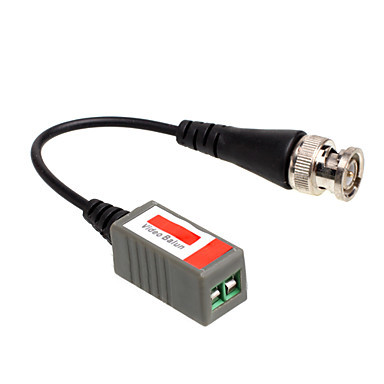

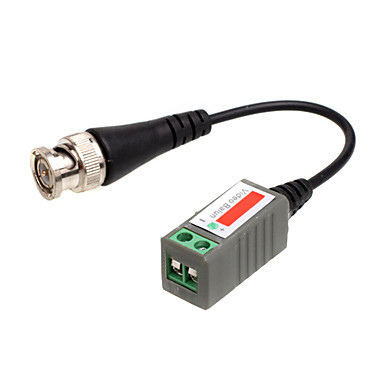

  • The CCTV Camera Video Balun is capable of receiving and transmitting video signals over UTP wire without using the power supply. Enables cost-effective, point to point transmission appliance for up to 600 meters.
  • This is 1 channel passive video transceiver can be used for CCTV Camera, BNC, Cat5 UTP and so on.


Features

  • The CCTV Camera Video Balun is capable of receiving and transmitting video signals over UTP wire without using the power supply
  • Enables cost-effective, point to point transmission appliance
  • BNC connect the CCTV camera and video output device, cat5 or better cable connected the two balun transceiver
  • Full-motion CCTV video at distances up to 600 meters when used with any passive transceiver
  • Up to 1000 meter with any active UTP video receiver
  • Video transmission via UTP CAT5 cable
  • Receiving and transmitting video signals over UTP cable without using the power supply
  • The CCTV Passive Video Balun supports all video device, such as camera, monitor, DVR card and recorder etc.
  • No power required
  • Frequency response: DC to 6MHz
  • BNC Impedance: 75 ohm
  • UTP, RJ45 Impedance: 100 ohm
  • The Video Transceiver is easy to install, using the standard UTP cable system
  • Connectors: Male BNC and terminal blocks
  • 60dB crosstalk and noise immunity
  • Unit dimension: 166x15x14mm
  • Unit net weight: 36g
  • Package Content: 2 x Video Balun
  • In retail packaging
