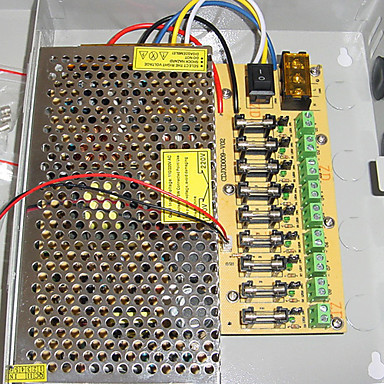

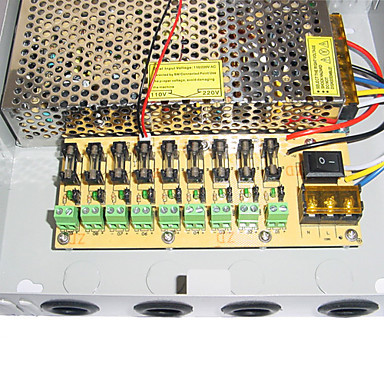

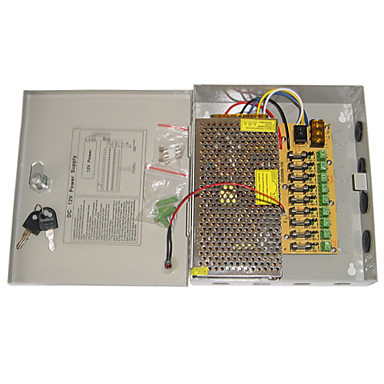

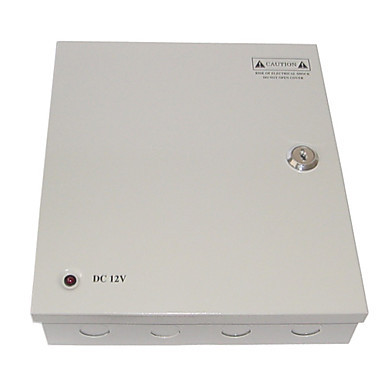

9-Channel 12V DC 10A Regulated Power Supply for CCTV System
9-Channel 12V DC 10A Regulated Power Supply for CCTV System
9-Channel 12V DC 10A Regulated Power Supply for CCTV System
9-Channel 12V DC 10A Regulated Power Supply for CCTV System
9-Channel 12V DC 10A Regulated Power Supply for CCTV System
9-Channel 12V DC 10A Regulated Power Supply for CCTV System
9-Channel 12V DC 10A Regulated Power Supply for CCTV System
9-Channel 12V DC 10A Regulated Power Supply for CCTV System
Specifications
Place of Origin :
Shenzhen,China
Brand Name :
ZONEWAY
Certification :
CE
Model Number :
211531
Description

Highlights

  • This 9-Channel Power Supply handles up to 9 Cameras on 12V DC Power, allowing you to consolidate Camera Power in a central location, its fused 9-terminals output which is ideal for multi-camera CCTV system installation.
  • Individually Fused Outputs, with LED Indicators.


Specification

  • 9-Channel 12V DC 10A Regulated Power Supply for CCTV System
  • 12V DC Regulated
  • 9 outputs individually Fused
  • LED Indicator
  • Fuse Each Channel
  • Input Voltage: AC100-240V, 50/60Hz
  • Output Voltage: 12VDC, 1A Per channel for camera
  • Single Output: 1A, PTC (short-circuit auto-recovery)
  • Full-load Average Output: 1.0A
  • Protection: Output short circuit protection, output over current protection, overvoltage protection
  • Cooling Method: Air natural convection, thermal conductivity metal box. Radiation: metal box shielding electromagnetic radiation, anti-interference
  • Power ON/OFF switch; Spare fuses included ;
  • Easy installation
  • Application: Digital and electronic products; CCTV supervisory system; CCTV monitoring camera
  • Total Output Power: 120W Max.
  • Fuse Type: Glass Fuse
  • Operating Temperature -25°C ~ +60°C,20% ~ 90%RH
  • Storage Temperature: -40°C ~ +70°C,10% ~ 95%RH
  • Unit dimension: 235x205x52mm
  • Unit net weight: 1.2 kg
