Aluminum alloy structure, better magnetic shielding and cooling effect; better night vision;
IR Distance: 130 meters, facial recognition distance: 110 meters;
According to the zoom adjust the light of IR LEDs' automatically, ensure you a clear image and avoid flashlight effect;

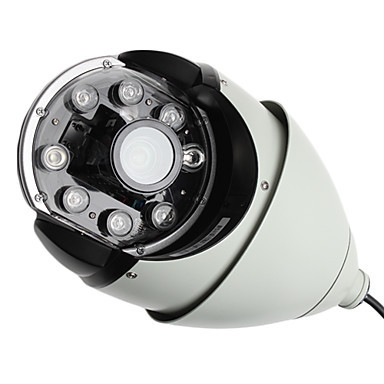

Adopt the third generation LED-Array IR Technology, more reliable, longer life, better night vision.
OSD English Menu, easy to control;

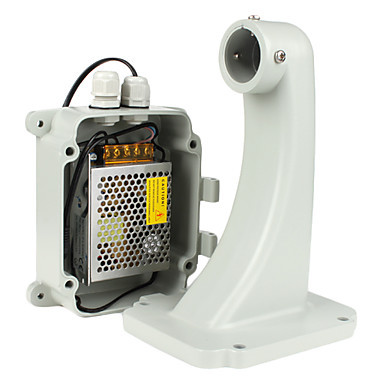

DC12V 5A Power bracket in the dome cover, convenient to install;
Complete isolated power design,high anti-interference performance;
High performance step motor, low consumption, no shakeness, 360°Continuous rotation, rotation speed: 0.5°~20°/sec;
Power-up state, setting the address code is effective, no need to restart the dome camera;
Auto running memory against power outage;
8 tours scan, 16 presets/ tour;
Support linear scan, scan speed: 6°/9 °/15°/20° adjustable.
Support multi-protocols: Pelco D/P,Sony, LG, CNB etc.
Specification
|
Image Sensor |
|
Sensor Type |
Sony CCD |
|
Sensor Size |
1/4 Inch |
|
Signal System |
PAL, NTSC |
|
Horizontal Resolution |
520TVLine |
|
Lens (mm) |
3.6~97.2 |
|
Viewing Angle (Degree) |
75~2 |
|
Minimum Illumination (Lux) |
0.1 |
|
Physical/Environment |
|
Camera - Power Supply |
12 |
|
Camera - Operate Temperature (℃) |
-30~+50 |
|
Camera - Storage Temperature (℃) |
-30~+50 |
|
Camera - Operating Humidity (%) RH |
90 |
|
Camera - Additional Features |
|
Camera Type |
Dome Camera |
|
Waterproof |
Yes |
|
Water Resistant |
IP66 |
|
IR Distance (m) |
130 |
|
S/N Ratio (dB) |
48 |
|
Video Output |
BNC 1.0Vp-p 75Ω |
|
White Balance |
Automatic |
|
Backlight Compensation |
Automatic |
|
Automatic Gain Control |
On/Off |
|
Electronic Shutter |
1/50(1/60)-1/60000 |
|
Power Supply Parameters |
|
AC Input(V) |
AC100V~240V |
