Specifications
Place of Origin :
China
Certification :
ISO9001:2008&ROHS
Model Number :
WPSK-4550
aluminum foil thickness(micron) :
38um
fiberglass weight(g/m2) :
Flame-retardant Adhesive
Basic Cloth :
7um
colour :
16*12Threads/10cm*10cm
roll width :
40g/square meter
Adhesive Type :
155 g/square meter
Certificate support :
145.3N/25mm
Reflectivity :
73.9 N/25mm
Temperature Resistance :
135 N
Roll Width :
-26°C to 66°C not delaminating
Description

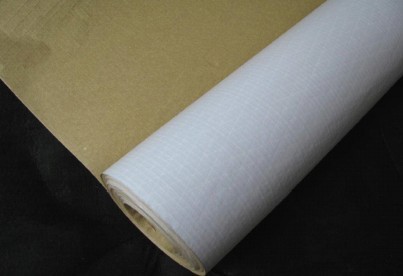

White PP film laminated aluminum foil and kraft paper with fiberglass scrim reinforced

WPSK-4550 Alu. Foil + BOPP

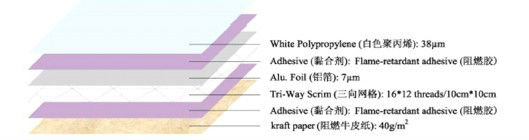

Product Structure Description
White BOPP 38μm
Adhesive Flame-retardant Adhesive
Aluminum Foil 7μm
Fiberglass 16*12Threads/10cm*10cm
Adhesive Flame-retardant Adhesive
Kraft Paper 40g/m²
White PP film laminated aluminum foil and kraft paper with fiberglass scrim reinforced
Physical Property Value Test Method
Basic Weight 155 g/m² Scale
Tensile Strength MD 145.3 N/25mm GB/T 7689.5-2001
Tensile Strength CD 73.9 N/25mm GB/T 7689.5-2001
Burst Strength 135N GB/T 454-2002
Temperature Resistance -26°C to 66°C not delaminating -
Water Vapor Permeability - -
Flame Retardant Grade B2 GB8624, GB/T8626


White PP film laminated aluminum foil and kraft paper with fiberglass scrim reinforced

We also Produce:Aluminum foil fiberglass cloth | Aluminum foil tape | Aluminum foil with adhesive | Aluminum foil tape without liner | Aluminum foil composite PP woven | Aluminum foil with PE woven |heat resistant material | light weight heat resistant materials | insulation for fireplaces | waterproof insulation | thermal insulation fabric | boiler insulation material | pipe insulation | wall insulation duct insulation | foil backed insulation | reflective insulation | ceramic fiber cloth with aluminum | heat resistant building material | asbestos cloth with aluminum | refrigerator aluminium tape | aluminum duct tape | hot pipe insulation | building heat insulation material

WHY INSULATE ?

Insulation is necessary to reduce energy consumption, sound pollution and improve the comfort

and quality of life in new or existing buildings regardless of the construction system.

Environmental qualityInsulation fights global warming as it reduces greenhouse gases.

Insulating your home is an ecological process. The signing of the Kyoto agreements was

a major stage in collective awareness of the need to protect the environment by fighting

global warming.

aluminum foil
Energy efficiency in buildings

Buildings account for 40% of energy consumption in most countries, yet their potential for

energy efficiency is huge. By using adapted insulation and energy savings techniques,

up to 80% of a building’s energy consumption for heating or cooling can be saved.

A strategy for improvedenergy efficiencyof existing buildings is a necessity if the energy

consumption is to be reduced significantly over a limited period of time. The life time of buildings

ranges from 50 to 100 years and improvement of the existing building stock will thus have much

higher impact than the tightening of requirements for new buildings.
“A building has a long life cycle, so its effect on the environment is a long and continuing issue to consider.”

Reducing energy consumption in buildings through their better thermal insulation

In a building that is insufficiently or not insulated, heat flows through the roof or the façades

thus leading to increased energy needs for heating (in winter) or for cooling (in summer).

aluminum foil

White PP film laminated aluminum foil and kraft paper with fiberglass scrim reinforced

80% of the energy bill of a home owner is due to heating costs, therefore reducing energy

needs must be a priority without sacrificing comfort. In order for everybody to achieve this goal,

Saint-Gobain Isover proposes insulants to consumers with the best efficiency to

invested money ratio.Insulation = savings

WHERE TO INSULATE?

To obtain a thermally homogenous home and reduce heat losses properly, provide comfort in

winter and summer, all surfaces in contact with the outside (roof, wall, loft) must be insulated.

All walls and the roof in particular must be insulated

The thermal performance of insulation must be very high in the roof. In winter and summer,

strong thermal resistance in the loft is essential.
In winter, losses are at their maximum through all opaque and glazed surfaces and structural links.

In the summer, direct sunlight on the walls and roofs - particularly exposed - can overheat the interior temperature. The same goes for windows which need outside shutters,

blinds, awnings, etc to deflect direct sunlight from the house.

aluminum foil

In a home that is not properly insulated, heat escapes through:

White PP film laminated aluminum foil and kraft paper with fiberglass scrim reinforced

aluminum foil
