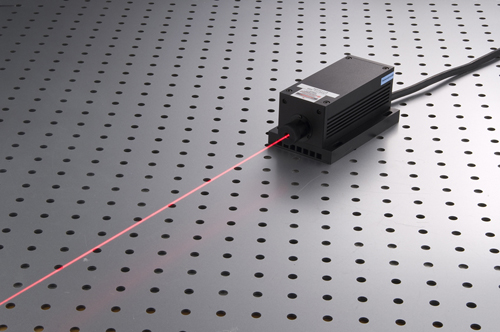

High power red laser
High power red laser
Specifications
Description

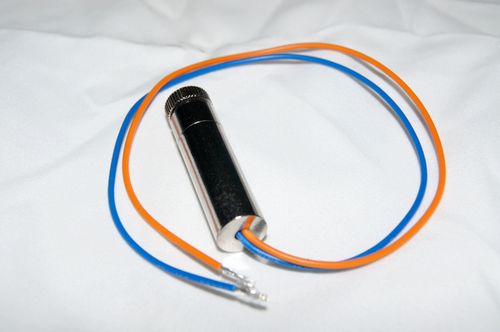

High Power Laser Diode Modules
Wavelength: 635 nm or 650 nm
LD Power: 30mw (635nm), 50/60mw (650nm)
Operating Voltage:3~5VDC

High Power Laser Diode Modules
High Power Laser Diode Module means that output power is more than 40mW. This products has big output power, good collimation, beam with small size. It meets needs of far resistance working or high brightness working ( such as stage lights, landscape project and so on.)

Specifications

ModelWavelengthOutput PowerApertureBeam sizeLensDimension
HL65-100M650nm>80mW<;;0.2mrd8x12mm(@20m)Glass

HL65-130M

650nm

>100mW

<;;0.2mrd

8x12mm(@20m)

Glass

HL65-150M

650nm

>120mW

<;;0.2mrd

8x12mm(@20m)

Glass

HL65-300M650nm>200mW<;;0.6mrd30x30mm(@20m)Glass
HL65-100M650nm>400mW<;;0.6mrd30x30mm(@20m)Glass
HL65-800M650nm>550mW<;;0.6mrd40x50mm(@20m)Glass
HL65-1000M650nm>700mW<;;0.6mrd40x50mm(@20m)Glass
HL63-150M635nm>100mW<;;0.6mrd40x50mm(@20m)Glass
HL63-300M635nm>200mW<;;0.6mrd30x30mm(@20m)Glass
HL63-500M635nm>400mW<;;0.6mrd40x50mm(@20m)Glass

HL63-700M635nm>600mW<;;0.6mrd40x50mm(@20m)Glass
