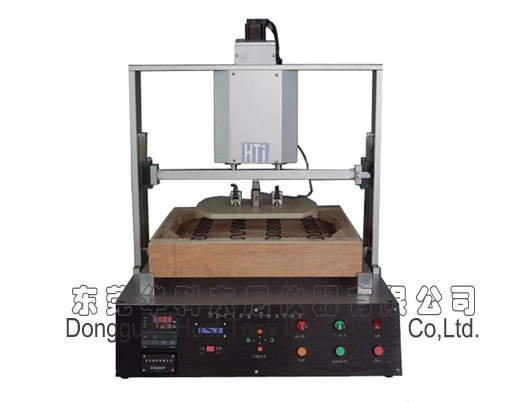

Spring Tester TNJ-011
Spring Tester TNJ-011
Specifications
Place of Origin :
China
Brand Name :
Tony
Model Number :
TNJ-011
Description

This tester is designed for testing sofa pring frame and spring pack.It can perform the following 3 kinds of test requirements:

1) Durability Test

The spring undergone a repeated specific force, the test cycles is pre-settable, and the test stop when the set cycle is up.

2) Fix stroke test

The presser comes down to a specify stoke, read the force on that stroke from the pressure gauge.

3) Fix force test

The presser comes down to a specify force, the presser stop and the compression rate (stroke) will be displayed on the screen.

Specialize using in testing the durability and endure of sofa’s spring frame and spring pack.

Technical parameters:

Max pressure: 80 kg

max range: 150mm

Voltage: 220 V

Pressure sense precision: 0.3% FS

Stroke precision: ±0.2 mm

Power: 400 W

Standards:

QB/T1952.1-2003 , QB/1952.2-2004 , GB/T10357.1-1989 , QB/T1951.2-1994
